Atomos ATO-RONIN-DUO
Dual Recorder/Player/Monitor

OUR PART #:  ATO-RONIN-DUO

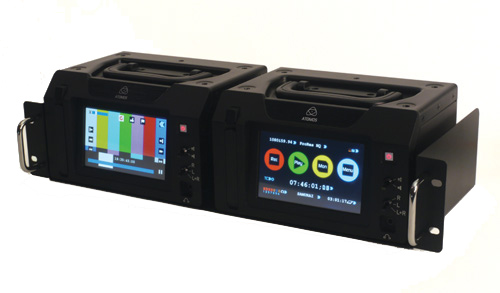

Ronin Duo offers two Ronins elegantly mounted side-by-side in an included custom 19" Rack Adapter.
Learn More
Our Price: $1,995.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Atomos ATO-RONIN-DUO
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Ronin Duo offers two Ronins elegantly mounted side-by-side in an included custom 19" Rack Adapter. Combining dual HDD/SSD recording and dual 5" monitoring for recording and playback, the Ronin Duo delivers exactly what professional environments require. Back up recording and multiple monitors give confidence and peace of mind on any production.

Features:

  • AtomOS 3.0 touchscreen application for recording, monitoring, playback and edit review
  • Compact half-rack size – portable or rack mount
  • Full HD-SDI Recorder/Player , ProRes or DNxHD
  • AC, DC or battery operation
  • Balanced audio with XLR inputs and outputs
  • Front panel headphone jack
  • Serial control compatible
  • Top handle, tilting feet and 1/4 inch mounting points for accessories

Specifications:

  • Weight: 1.9kg (1890 grams) / 4lb 3oz
  • Dimensions (without batteries): 102mm (H) x 202mm (W) x 140mm (D)
  • Construction: Steel construction for durability + portability. Fanless for silent operation.
  • Operating Power: 3.3W (Monitoring Only) / 6.8W (Rec, Mon & Play)
  • Power and battery options (All 7.4v):
      -  Internal AC power supply 100-240V: 2600mAh - Up to 4hrs
      -  7.2V-14.4V Battery System: 5200mAh - Up to 8hrs (Compatible NP Series)
      -  2 x DC output: 7800mAh - Up to 12hrs
      -  D-Tap: D-Tap Adaptor (cables sold separately)
          *  AC power charges batteries. In the event of loss of AC, power seamlessly transfers to batteries.
  • Continuous Power (Patent Pending):
      -  Primary-Secondary battery system. Change batteries without losing power.
      -  Loop batteries continuously.
  • Touchscreen:
      -  Size: 5” diagonal
      -  Resolution: 800x480
      -  Aspect Ratio:
          *  16:9 native
          *  4:3 Letterbox
          *  SMPTE Colour Specification
      -  Native Frame Rate Playback (48-60Hz)
  • Video Input:
      -  Uncompressed 10/8-bit 4:2:2
      -  Simultaneously displayed on internal 5” Samurai screen
      -  Full size BNC
          *  3G/HD/SD-SDI x 1
          *  HDMI x 1 (with optional H2S Connect HDMI -> SDI converter)
          *  DI SMPTE
          *  259/292/296 Mini
          *  BNC (75 ohm)
          *  HDMI v1.4
  • Video Output:
      -  Uncompressed 10-bit 4:2:2
      -  Simultaneously displayed on internal 5” Samurai screen
      -  Full size BNC
          *  HD/SD-SDI x 1
          *  HDMI x 1 (with optional S2H Connect SDI -> HDMI converter)
          *  DI SMPTE
          *  259/292/296 Mini
          *  BNC (75 ohm)
          *  HDMI v1.4
  • Supported Formats (In/Out):
      -  HD 1080i60
      -  1080i59.94
      -  1080i50
      -  1080p30
      -  1080p25
      -  1080p24
      -  1080p23.98
      -  1080pSF23.98
      -  1080pSF24
      -  1080pSF25
      -  1080pSF30
      -  720p60
      -  720p59.94
      -  720p50
      -  SD 480i
      -  486i
      -  576i
  • Realtime Hardware Encoding (1920x1080 8/10-bit 4:2:2 to):
      -  Apple ProRes®:
          *  HQ - 220Mbps
          *  422 - 150Mbps
          *  LT - 100Mbps
      -  Avid DNxHD (available end Q3/2012):
          *  Avid DNxHD-220/220x - 220Mbps (8/10-bit)
          *  Avid DNxHD-185/185x - 185Mps (8/10-bit)
          *  Avid DNxHD-145 - 145 Mbps (8-bit)
  • Onboard Processing (Auto detect and remove or insert pulldown):
      -  25pSF (50i) > 25p
      -  30pSF (60i) > 30p
      -  24p (3:2-60i) > 24p
      -  23.98p (3:2-59.94i) > 23.98p
  • Audio input (48kHZ PCM audio): SDI 12 channels + 2 analogue channels with gain controls + 2 balanced XLR channels
  • Audio output (48kHZ PCM audio): SDI 12 channels + headphone for onboard review (Select any pair of channels) + 2 balanced XLR channels.
  • Remote Start and Stop:
      -  Via SDI trigger
      -  Via SDI timecode
      -  Via Lanc controller
  • Recording Time (I-Frame Only, 4:2:2, 8/10-bit) [HDD & SSDs are hot-swappable on the fly in the field]:
      -  ProRes® HQ (10-bit, 220Mbps):
          *  250GB: 2.5 hrs
          *  500GB: 5 hrs
          *  1 TB: 10 hrs
      -  Avid DNxHD 220x (10-bit, 220Mbps)
          *  250GB: 2.5 hrs
          *  500GB: 5 hrs
          *  1 TB: 10 hrs
      -  ProRes® 422 (10-bit, 150Mbps)
          *  250GB: 4 hrs
          *  500GB: 8 hrs
          *  1 TB: 16 hrs
      -  Avid DNxHD 145 (8-bit, 145Mbps)
          *  250GB: 4 hrs
          *  500GB: 8 hrs
          *  1 TB: 16 hrs
      -  ProRes® LT (10-bit, 100Mbps) [SD not supported by Avid DNxHD]:
          *  250GB: 5.5 hrs
          *  500GB: 11 hrs
          *  1 TB: 22 hrs
  • Supported Applications:
      -  FCPX/FCP7+
      -  Media Composer 5.0+
      -  Premiere 5.5+
      -  EDIUS 6.0+
      -  Vegas Pro 10+
      -  Lightworks
