Apollo Design Technology AC-CLAMP-GG-C-S
48 Get a Grip Clamps, Silver

OUR PART #:  AC-CLAMP-GG-C-S

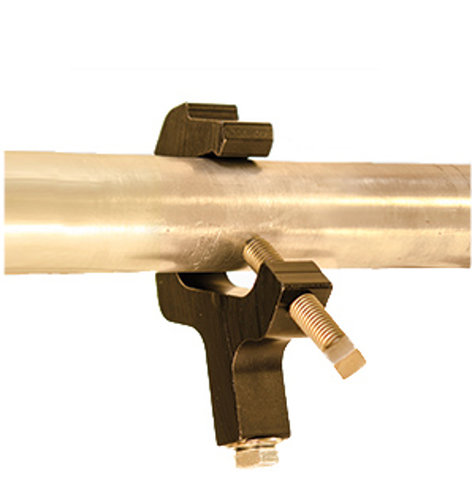

NOTE: Product shown in image is for illustrative purposes only - actual product is silver.
Learn More
Our Price: $505.62
List Price: $724.80
You save 30%!
Write the first review.
Apollo Design Technology AC-CLAMP-GG-C-S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

NOTE: Product shown in image is for illustrative purposes only - actual product is silver.

The aluminum c-clamp, Get-A-Grip™, is the strong and durable method of hanging your fixtures. The 1/2" -13x3" square head pipe mounting bolt, along with the interior "teeth" of the clamp, bite onto pipe sizes ranging from 3/4" - 1 1/2" and tubing of 1" to 2" OD. The c-clamp for mini fixtures is made from high strength, black anodized extruded aluminum.

Apollo Design Technology AC-CLAMP-GG-C-S Specifications:

  • Dimensions: 5.780" x 3.788" x 1" (146.812mm x 96.215mm x 25.4mm)
  • Weight: 14.3 oz (0.405 kg)
  • SVWL (Safe Vertical Work Load) Rating: 500 lbs (227 kg)
  • Schedule 40 Pipe: 3/4" x 1 1/2" (19.05mm x 38.1mm)
  • Tubing: 1" - 2" OD
  • Finishes: Black Anodized / Silver (Mill Finish)
  • Hardware includes a 1/2"-13 x1" zinc plated fixture mounting bolt and a Belleville washer.
