ETC/Elec Theatre Controls S4jrDIM
Source Four jr Dimmer Kit in Black with Lamp Housing

OUR PART #:  S4JR-DIM

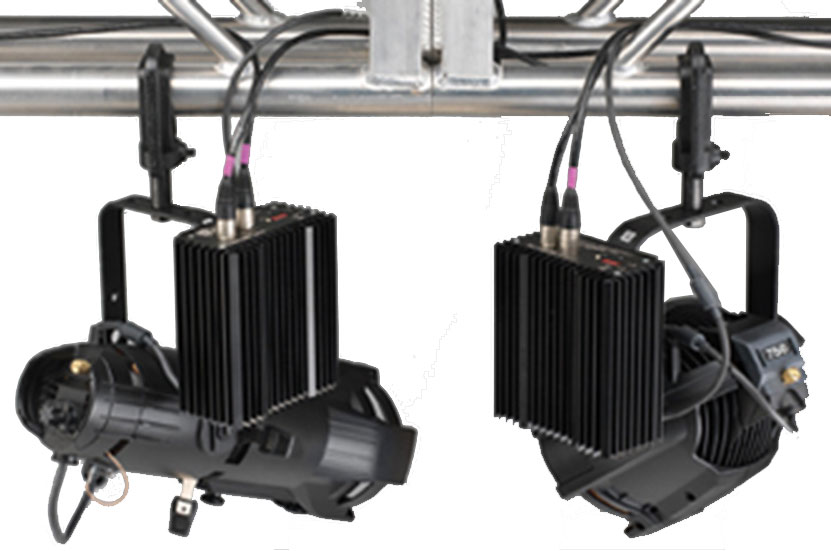

Product shown in image is for illustrative purposes only. Actual product is the dimmer and housing unit only.
Learn More
Our Price: $461.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls S4jrDIM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Product shown in image is for illustrative purposes only. Actual product is the dimmer and housing unit only.

This Source Four Dimmer Kit comes in a black finish and is retrofited to interface with existing Source Four jr / jr Zoom fixtures. Kit includes the lamp housing.

The Source Four Dimmer offers a new standard in high-performance tungsten-lighting applications with an integrated dimmer. Using ETC’s Electronic Silent* (ES) technology and a convection-cooled design, this high-performance dimmer can be placed in acousticallysensitive venues. By taking DMX control signals directly, this selfdimming tungsten fixture can now reside alongside LEDs and moving lights, allowing system designs to focus on switched power and data distribution instead of centralized dimming systems.

Applications:

  • Applications requiring distributed dimming and positionflexibility:
      -  Theaters
      -  Hybrid incandescent,LED and discharge systems
      -  Industrial productions
     -  Rentals
      -  Conference and exhibition centers
     -  Multi-use venues such as schools and meeting rooms

ETC Source Four Dimmer Kit Features:

  • Source Four-mounted dimmer
  • Stand-alone operation
  • ES750 Dimmer includes onboard plug
  • Convection-cooled, no fans
  • ES technology provides noise-free operation
  • Built-in dimming curves
  • DMX/RDM in and thru

ETC Source Four Dimmer Kit Specifications:

General

  • Designed for use with all tungsten Source Four® family fixtures
  • Electronic Silent technology for operation free of dimmerand lamp-filamentnoise
  • Changes your Source Four into a truly distributed fixture with onboarddimming and control
  • Electronic Dimming with harmonic and noise suppression - Acousticspecification replaces dimmer rise time

Mechanical

  • Manufactured of epoxy-painted aluminum body and anodised aluminum heatsink
  • Multiple yoke-fixing hole combinations for flexible mounting to thefixture
  • Convection-cooled; operates without cooling fans

Electrical

  • Input power feed:
      -  Suggested breaker sizing:20A
      -  Voltage ranges: 85-140V, 180-260V
      - Frequency range: 47-63Hz
      -  Supports 208V input to 115V outputregulation
  • Accoustic specification replaces risetime
  • Bare-end power cable input
  • Lamp burner directly connected to output cable
  • 2500V isolation between control and power components
  • Max output 750W
  • DMX* In and Thru
  • DMX thru is not self-terminating
  • Electronic overcurrent protection

*Represents 1/4 unit device load for purpose of calculating DMX daisy -chain device count (max 32 unit devices per DMX chain)

Thermal

  • Maximum ambient temperature 104°F
  • Humidity between 10 - 95%, non-condensing
  • Convection-cooled
  • Optimum cooling when mounted with heatsink fins in vertical position
  • 171 Btu at full load

Dimensions

  • Shipping Weight: 7.6 lbs.
  • Shipping Dimensions: 15.5x9x6.75 in.
