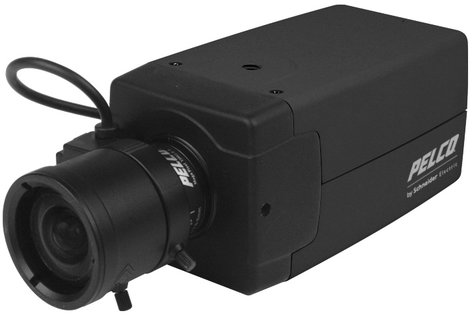

Pelco C20-CH6
1/3-Inch CCD High-Resolution NTSC Color Box Camera, 24VAC/12VDC


Our Price: $182.50
Write the first review.
Pelco C20-CH6
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products


  • 650 TV Lines
  • 0.25 Lux Sensitivity
  • 1/3-Inch Format CCD Imager
  • Digital Signal Processing
  • CS Lens Mount
  • Autosensing DC Drive Auto Iris
  • Digital Electronic Day/Night
  • Automatic/Manual White Balance Settings for Difficult Lighting Situations
  • Selectable Automatic Gain Control
  • Advanced Backlight Compensation
  • Autosensing Power (24 VAC/12 VDC with Internal Synchronization)
  • 2D Digital Noise Reduction (DNR)
  • Privacy Zones
  • Built-in Unshielded Twisted Pair (UTP) Output
  • Motion Detection
  • Camera Titles
  • Adaptive Tone Reproduction (ATR) to Compensate for Gradation of Subjects to an Optimum Level

The C20-CH Series is Pelco's general-purpose digital color CCD camera.  It is designed for installations with fixed lighting conditions.  Its full features insure that images are clear and crisp at all times under consistent light.  The camera's size, combined with its numerous features, makes it the ideal camera for most applications.

The C20-CH Series is an ultra-high-resolution digital camera with 650 TV lines of resolution and 0.25 lux minimum illumination.  Camera
features include autosensing power (24 VAC or 12 VDC with internal synchronization), and automatic gain control (AGC).

The C20-CH Series includes automatic white balance (AWB) for difficult lighting situations, digital noise reduction for clearer image quality, and backlight compensation (BLC) that adjusts the picture to prevent objects from appearing dark due to a strong backlight.

The C20-CH Series also features built-in analytical capabilities including privacy zones, motion detection, and camera titles.  These features are easily set using the on-screen menus.

The convenient on-screen menu contains features that are not typically found in a general purpose camera including area masking, titling, pixel correction, and preset lighting profiles.

The C20-CH Series is quick and easy to install.  The camera is also featured in Pelco's DomePak® and ImagePak® fixed camera dome/enclosure packages.  The optional (sold separately) C10-UM wall/ceiling/rail mount kit offers easy installation in many non-enclosure applications, for all models.

The C20-CH Series has a standard CS lens mount and can be used with fixed, manual, or auto iris (DC drive) lenses.  The iris is controlled through a standard 4-pin square connector that is included on all Pelco auto iris lenses.

General Specifications:

  • Imaging Device: Sony® 1/3-inch EXview HAD CCD II™ 960H
  • Signal Processing: Sony new digital signal processor, Effio-E™
  • Picture Elements [NTSC]: 976 (H) x 494 (V), approx. 480k
  • Sensing Area: 4.7 x 3.5 mm (3/16 x 1/8-inch)
  • Scanning System [NTSC]: 525 lines, 2:1 interlace
  • Synchronization System: Internal
  • Horizontal Resolution: 650 TV lines
  • Auto Iris Lens Type: DC drive
  • Sensitivity: 0.25 lux, f/1.2, 30 IRE
  • Electronic Day/Night Switch Signal-to-Noise Ratio: 48 dB (>52 dB by parameter adjustment)
  • Automatic Gain Control: On/off 35 dB
  • Backlight Compensation: Yes
  • White Balance: ATW/push lock/manual/anti-CR/user2/user/push
  • Color Correction: With white balance
  • Gamma: Selectable (ATR)
  • Video Output: 1 Vp-p, 75 ohms
  • Auto White Balance Range: 2,500° to 9,500°K
  • Noise Reduction (DNR): 2D
  • Privacy Zones: Yes
  • Motion Detection: Yes
  • Camera Titles: Yes

Electrical Secifications:

  • Power Requirement: 12 VDC/24 VAC +10% to –15%, 60 Hz
  • Power Consumption: 3.5 W
  • Power Connector: 2-pin terminal block with push lock, or line cord on 220 VAC models
  • Video Connector: BNC
  • Auto Iris Connector: 4-pin connector (miniature square)

Mechanical Specifications:

  • Lens Mount: CS mount
  • Camera Mount: 1/4" UNC-20 screw, top or bottom of camera housing

Environmental Specifications:

  • Operating Temperature: –10° to 50°C (14° to 122°F)
  • Storage Temperature: –20° to 60°C (–4° to 140°F)
  • Operating Humidity: 20% to 90%, noncondensing
  • Storage Humidity: 20% to 90%, noncondensing

Physical Specifications:

  • Dimensions (includes BNC): 4.25" L x 2.36" W x 2.17" H (108 x 60 x 55 mm)
  • Weight (without lens): 0.66 lb (0.30 kg)
  • Shipping Weight: 1.21 lb (0.55 kg)


  • CE, Class B
  • FCC, Class B
  • UL/cUL Listed

Recommended Mounts: C10-UM C10 series universal wall/ceiling/rail mount kit

Recommended Power Supplies:

  • TF2000: Power supply for one 24 VAC camera, 20 VA
  • MCS Series: Multiple 24 VAC camera power supply, indoor
  • WCS Series: Single/multiple 24 VAC camera power supply, outdoor

Recommended Lenses:

  • 13VA, 13VD Series: Varifocal lenses, 1/3-inch format; 13VA (manual iris); 13VD (auto iris, DD)
  • 13ZD Series: Motorized zoom lenses, 1/3-inch format (auto iris, DD)
