Bogen Communications MCP35A
Master Control Panel

OUR PART #:  MCP35A

The MCP35A Master Control Panel provides facilities for instantaneous two-way communication and distribution of emergency pages...
Learn More
Our Price: $955.80
List Price: $1,151.57
You save 17%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bogen Communications MCP35A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The MCP35A Master Control Panel provides facilities for instantaneous two-way communication and distribution of emergency pages, background music or other program material to speaker-equipped locations. The control panel has two built-in amplifiers. The intercom amplifier, rated at 20 watts, features a frequency response shaped for maximum intelligibility. The 35-watt program amplifier ensures that program material and/or emergency announcements are clearly heard and easily understood. Front panel step-by-step instructions and color-coded lines make the MCP35A easy to operate. Distribution of program material is accomplished by simple push-button program selection, following the color-coded guidelines. Emergency announcements to all locations take precedence over program distribution and are accomplished with a single (EMERGENCY PAGE) push button selection.

Inputs are provided for two Lo-Z balanced microphones, a Hi-Z unbalanced AUX program source (CD player/tuner, etc.), and telephone paging accessories. Booster amplifier IN/OUT connections are also provided. Provision are included to supply phantom power to microphones, distribute time signals to speakers, and make emergency all-call page announcements from telephone or remote microphone. Rear-panelmounted and internal controls are provided to adjust the gain level of individual inputs and to enable/disable system features.

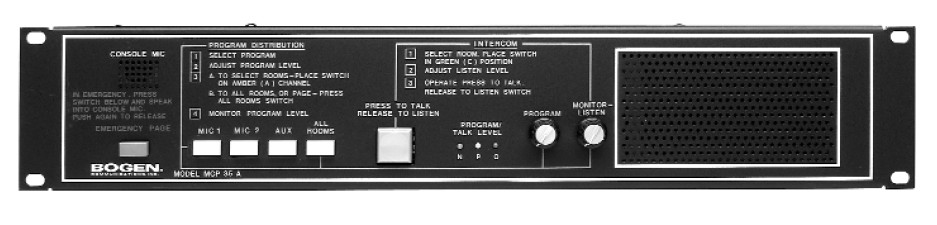

A console microphone (built-in) is normally used to communicate with a station over the intercom channel, to send emergency page announcements to all stations, and may be used as program MIC 1. It is easily defeated for external microphone applications. A built-in speaker is used for intercom communication and for monitoring program material before distribution. Provision is included to mute the speaker when the MIC 1 switch is pressed.

 The MCP35A uses room selector panels to direct intercom or program to selected staff stations. Panels are provided with switches to
place each room on a program channel, intercom channel, or off. Each switch position on the panel includes an LED call-in annunciator.
When a staff station is called from the control panel, a supervisory tone alerts the staff member to the call. The tone repeats at regular intervals to prevent unauthorized monitoring. Calls from staff stations may be initiated through call-in switches and can include privacy control to positively prevent monitoring. Provision is included for voice call-in from stations equipped with voice call-in switches.

Specifications:

  • Rated Output:
      -  Program 35W RMS
      -  Intercom 20W RMS
  • Frequency Response:
      -  Program +1,-3 dB from 80 Hz to 15kHz
     -  Intercom Shaped for maximum intelligibility
  • Distortion: Less than 1% @ RPO and bandwidth
  • Inputs:
      -  Two Lo-Z balanced microphones
      -  Hi-Zunbalanced AUX; TELCO PAGE; 25V BOOSTER
  • Output: 25V balanced line
  • Controls:
      -  Front Panel Program Selection: MIC 1, MIC 2,AUX
      -  Level: MONITOR/LISTEN, PROGRAM
      - Distribution: ALL ROOMS, EMERGENCY PAGE, PRESS TO TALK
      - Indicators: PROGRAM/TALK LEVEL
      -  Rear Panel Input Gain: MIC 1,MIC 2, AUX, TELCO PAGE, TALK, LISTEN
      -  Internal Gain:Emergency Page, Supervisory Tone,Time Tone; Enable/Disable: MIC1/CONSOLEMIC,
    MIC 2/TELCO PAGE, Phantom Power, Supervisory Tone
      - Tone Specifications Time Tone: 750 Hz; Supervisory Tone: Repeating, 500 Hz;Call-in Tone: Repeating,
    oscillates between 500 Hz and 750 Hz (SwitchingFrequency, 16 Hz)
      -  Power Requirements 120V, 60 Hz AC, 100Wmaximum
      -  Dimensions 19" W x 3-1/2" H x 10" D, 2 Rackspaces
      -  Weight 6 lb.
