Tripp Lite SRW12US
Wall Mount Enclosure 12U

OUR PART #  SRW12US

Our Price: $434.00
List Price: $558.00
You save 22%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

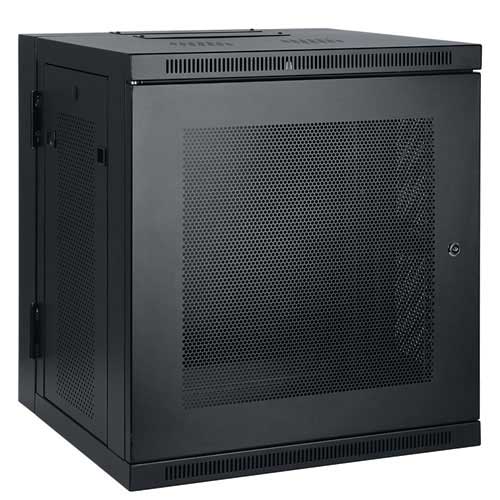

The SRW12US 12U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 140 lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.

Features:

  • 12U with adjustable front and rear vertical rackmount rails
  • Hinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible)
  • Locking, reversible front door and locking, removable side panels
  • Fully assembled for quick installation
  • PCI-Compliant: meets stringent physical security requirements

Specifications:

PHYSICAL

  • Installed whole system maximum rack depth (inches)  20.5
  • Installed whole system maximum rack depth (cm)  52.07
  • Installed whole system minimum rack depth (inches)  3
  • Installed whole system total rack space height (rack spaces)  12U
  • Unit weight (lbs)  60
  • Unit weight (kg)  27.21
  • Unit Dimensions (cm)  EXTERNAL DIMENSIONS: 63.5 x 60 x 54.9 (HWD)
  • Unit Dimensions (in)  EXTERNAL DIMENSIONS: 25 x 23.63 x 21.6 (HWD)
  • Color  Black
  • Weight Capacity - Stationary (lbs)  200
  • Installed whole system minimum rack depth (cm)  7.62
  • Weight Capacity - Stationary (kg)  90.7
  • Cable Access Hole Measurement (inches)  9.812 x 2.35 (l x w)

SPECIAL FEATURES

  • Grounding lug  Front and Back door frames

CERTIFICATIONS

  • NOM (Mexico)  Tested to NOM (Mexico)
  • Approvals  EIA-310-E, IEC 60297-3-100, DIN 41494, IP20 Protection Rating, RoHS

Click to download

Tripp Lite SRW12US
Wall Mount Enclosure 12U

OUR PART #  SRW12US

Product Information:

The SRW12US 12U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 140 lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.

Features:

  • 12U with adjustable front and rear vertical rackmount rails
  • Hinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible)
  • Locking, reversible front door and locking, removable side panels
  • Fully assembled for quick installation
  • PCI-Compliant: meets stringent physical security requirements

Specifications:

PHYSICAL

  • Installed whole system maximum rack depth (inches)  20.5
  • Installed whole system maximum rack depth (cm)  52.07
  • Installed whole system minimum rack depth (inches)  3
  • Installed whole system total rack space height (rack spaces)  12U
  • Unit weight (lbs)  60
  • Unit weight (kg)  27.21
  • Unit Dimensions (cm)  EXTERNAL DIMENSIONS: 63.5 x 60 x 54.9 (HWD)
  • Unit Dimensions (in)  EXTERNAL DIMENSIONS: 25 x 23.63 x 21.6 (HWD)
  • Color  Black
  • Weight Capacity - Stationary (lbs)  200
  • Installed whole system minimum rack depth (cm)  7.62
  • Weight Capacity - Stationary (kg)  90.7
  • Cable Access Hole Measurement (inches)  9.812 x 2.35 (l x w)

SPECIAL FEATURES

  • Grounding lug  Front and Back door frames

CERTIFICATIONS

  • NOM (Mexico)  Tested to NOM (Mexico)
  • Approvals  EIA-310-E, IEC 60297-3-100, DIN 41494, IP20 Protection Rating, RoHS

Click to download
