Shure FP135/83-G5
FP Bodypack & Plug-On Wireless Microphone System with WL183 Lavalier

OUR PART #  FP135/83-G5

Our Price: $799.00
List Price: $999.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

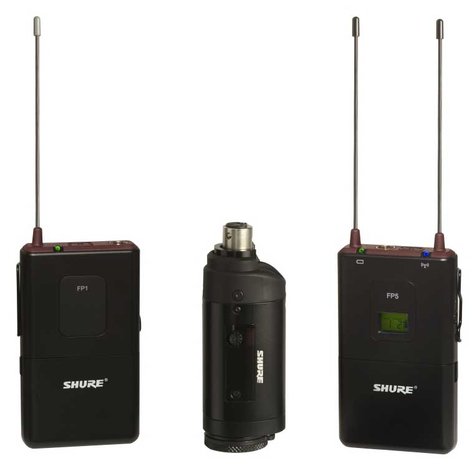

Includes FP1 Bodypack Transmitter, FP3 Plug-On Microphone Transmitter and FP5 Portable Receiver, and WL183 Omnidirectional Lavalier Microphone

When portability is required, FP Wireless and its intuitive, flexible components are the ideal solution.

FP Wireless features proven wireless technology, including Shure patented Audio Reference Companding, for professional sound capture in demanding videography and electronic field production (EFP) environments.

Features:

  • Wireless portability for the freedom to go wherever the job requires
  • Audio Reference Companding™ for crystal-clear audio
  • Automatic Frequency Selection locates an open frequency at the touch of a button
  • Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
  • Up to 20 compatible systems simultaneously
  • Diversity Antennas for consistent reception of signal transmission
  • All components powered by 2 AA batteries – no power cord required
  • XLR and 3.5mm cable output options
  • Single transmitter and dual transmitter combo system options
  • All FP components are compatible with SLX® Wireless systems

System Specifications:

  • Working Range
    Line of Sight 100 m (300 ft)
    Note: Actual range depends on RF signal absorption, reflection and interference.
  • Tonekey 32.768 kHz
  • Audio Frequency Response 45 to 15000 Hz (±2 dB)
    Note: Dependent on microphone type
  • Total Harmonic Distortion
    Ref. ±38 kHz deviation with 1 kHz tone:  <0.5%, typical
  • Dynamic Range >100 dB, A-weighted

FP1 Bodypack Specifications:

  • Gain Adjustment Range -10 to +20 dBV
  • Input Impedance 1 MO
  • RF Output Power 10 to 30 mW
  • varies by region
  • Pin Assignments
    TA4M
    1: Ground (cable shield)
    2: + 5 V Bias
    3: Audio
    4: Tied through active load to ground (on instrument adapter cable, pin 4 floats)
  • Dimensions 108 mm x 64 mm x 19 mm (H x W x D)
  • Weight 81 g (3 oz.), without batteries
  • Housing Molded polycarbonate case
  • Power Requirements LR6 AA batteries, 1.5 V
  • Battery Life up to 12 hours (alkaline)

FP3 Plug-On Transmitter Features:

  • Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
  • LED indicator for control lockout, IR RF sync, low battery indicator
  • Powered by 2AA batteries
  • Audio Input Gain for adjustment of audio level
  • Three-stage Audio Input Level Indicator
    Green: audio present
    Yellow: nominal peak
    Red: signal clip
  • Rugged and durable Shure construction

FP3 Plug-On Transmitter Specifications:

  • Gain Adjustment Range 0 to +40 dBV
  • Input Impedance 9 kO
  • RF Output Power 10 to 30 mW
    varies by region
  • Dimensions 117 mm x 36 mm x 43 mm (H x W x D)
  • Weight 160 g (5.6 oz.), without batteries
  • Power Requirements LR6 AA batteries, 1.5 V
  • Battery Life up to 12 hours (alkaline)

FP5 Portable Receiver Features

  • 24 MHz bandwidth
  • Up to 20 compatible systems simultaneously
  • Power LED with low battery indicator
  • RF LED indicates transmitter sync when illuminated
  • Powered by 2AA batteries – no power cord required
  • Receiver output level control manages output to camera/mixer
  • TA3F cable output to either XLR or 1/8” connectors (included)
  • Diversity antennas for consistent reception of signal transmission
  • Rugged and lightweight Shure construction
  • Camera Shoe Mount (included)

FP5 Portable Receiver Specifications:

  • Dimensions 108 mm X 64 mm X 19 mm (H x W x D)
  • Weight 81 g (3 oz.)
  • Housing Molded polycarbonate case
  • Sensitivity –108 dBm for 12 dB SINAD, typical
  • Power Requirements LR6 AA batteries, 1.5 V
  • Battery Life up to 12 hours (alkaline)
