Delvcam DELV-HD7 Delvcam HDMI/VGA/Composite 16x9 7" Camera Top LCD Monitor

OUR PART #: DELV-HD7 MFR #: DELV-HD7

Copied to clipboard

The Delvcam DELV-HD7 is the latest addition to the Delvcam LCD lineup with a focus on bringing cost effective Portable HDMI LCD monitors to the broadcast industry. ...Read more

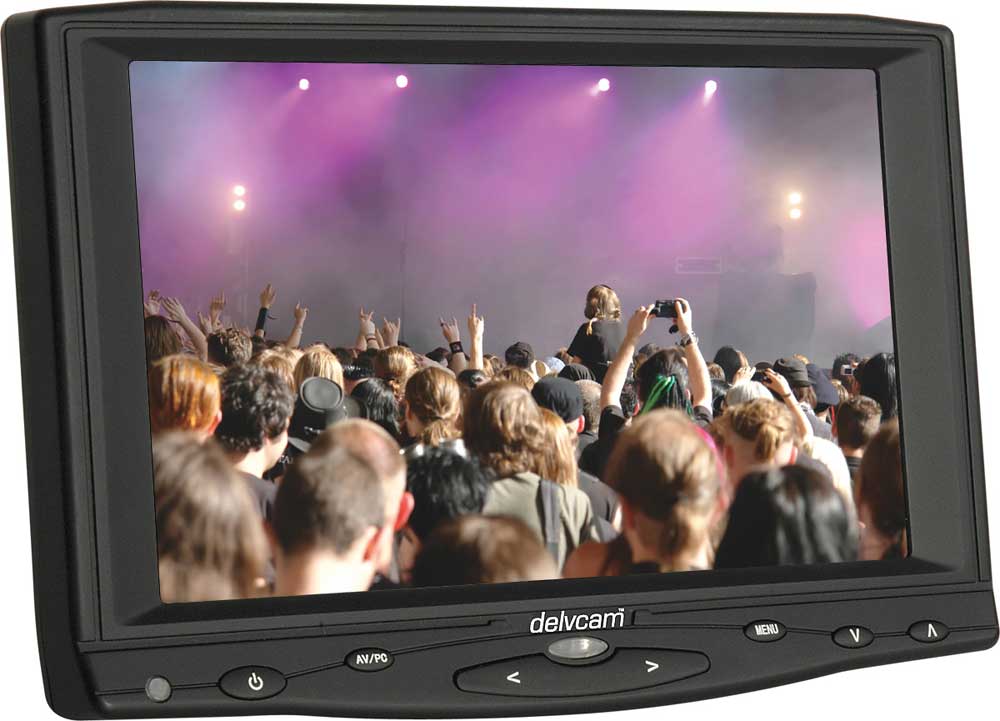

Delvcam DELV-HD7 Delvcam HDMI/VGA/Composite 16x9 7" Camera Top LCD Monitor Image 1
Delvcam DELV-HD7 Delvcam HDMI/VGA/Composite 16x9 7" Camera Top LCD Monitor
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Delvcam DELV-HD7 is the latest addition to the Delvcam LCD lineup with a focus on bringing cost effective Portable HDMI LCD monitors to the broadcast industry. It features HDMI & VGA inputs, as well as dual composite video and audio inputs, in a rugged high performance chassis. It's the best answer for applications where HD and VGA displays are needed in ENG / EFP applications, OB trucks and mobile operations. Its 1/4-20 bottom mount allows it to be quickly mounted just about anywhere when coupled with Delvcam's vast array of LCD mounts. It also features a VESA 75x75 mount for easy mounting on a filler panel or swivel arm. A power friendly LCD... it works on 12 Volts DC and is shipped with a universal 110/220 power adapter.

Delvcam DELV-HD7 Includes:

  • DELV-HD7 Monitor
  • DC (Cigarette) Cable
  • AC Adapter
  • Remote Control
  • Table Stand Mount
  • 1.5m HDMI cable
  • Multipin I/O breakout cable
  • Interconnect Cable (VGA/USB to Multipin)
  • Operation Manual

Delvcam DELV-HD7 Features:

  • HDMI input, VGA input (15 pin D-SUB analog RGB interface)
  • Supports High Resolutions - up to 1920x1440 (H x V) formatted
  • Automatic Display Adjustment
  • High-brightness LED backlight, minimal life time 20,000 hours
  • 4 adjustable backlight levels for daytime or night-time use
  • 2 RCA video inputs, audio input
  • NTSC/PAL color system
  • Loudspeaker built-in
  • Full-function IR remote control
  • Multilingual OSD menu

Delvcam DELV-HD7 Specifications:

  • Size/Type: 7" Diagonal TFT-LCD
  • Resolution: 800 (H) x (RGB) x 480 (V)= 1,152,000(dots)
  • Video input signal: 1.0Vp-p, composite video
  • Aspect ratio: 16:9
  • Contrast / Brightness: 500:1 / 300cd/
  • Viewing angle: 70/70(L/R), 50/70(U/D)
  • Operating temperature: -20° < ~ 70°
  • Storage temperature: -30° < ~ 80°
  • Power consumption: .8W
  • Power input: DC 12VDC
  • Dimensions (WxHxD): 7.4" x 5.0" x 1.6"
  • Mount: VESA 75x75
  • Weight: 0.95 Lbs. (0.42kg)
