Community V2-3564W
15" VERIS 2 Series 3-Way Loudspeaker in White with 60x40 Dispersion

OUR PART #:  VERIS2-3564-WHITE

The Community V2-3564W is a three-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations.
Learn More
Our Price: $978.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community V2-3564W
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Community V2-3564W is a three-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations. Featuring horn-loaded midrange and high-frequency drivers, the V2-3564W provides improved pattern control over two-way designs, making it well suited when intelligibility and musical clarity prove challenging, such as in large, reverberant spaces. The 60º x 40º pattern provides tight, controlled coverage, particularly useful in rooms that are deeper than they are wide. Extremely powerful with exceptionally low distortion, the V2-3564W is ideal for applications such as contemporary worship services, music and dance clubs, theatrical sound reinforcement, and other demanding work. Its trapezoidal design allows it to be clustered with like units, forming powerful arrays. The enclosure may be suspended from its M10 threaded rigging points using a variety of optional hardware available from Community, or it may be installed using a third-party mounting device. Featuring extended high-frequency response, low-distortion output, a tight, punchy bass response, and precise pattern control, the V2-3564W is a versatile performer for use in music and speech applications that require high-quality, high-power sound reinforcement. It includes a rotatable horn design that allows optimal dispersion in either vertical or horizontal mounting positions.

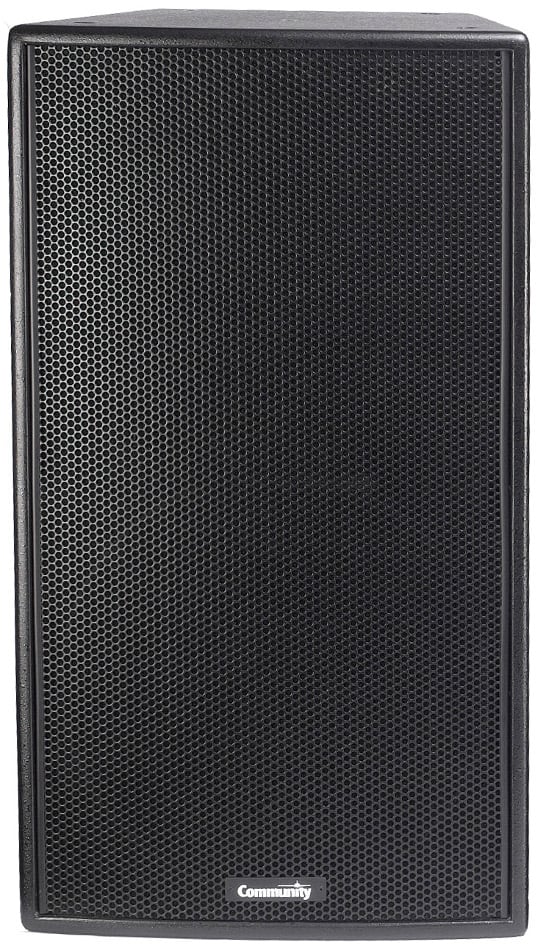

NOTE: Shown above in black in lieu of an available photo of the enclosure in white.

Community V2-3564W VERIS 2 15" 3-Way Loudspeaker Features:

  • Discreet and aesthetic trapezoidal enclosure
  • Optimized voicing for full-range reproduction
  • DYNA-TECH™ driver protection circuitry
  • Ferrofluid-treated HF driver for improved heat dissipation
  • Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability in LF driver
  • Terminal strip and NL4-compatible connectors
  • User-rotatable horn
  • Multiple bracket options offer affordable arraying solutions
  • Included in Community's Forecaster HD ceiling distributed system software.

Community V2-3564W VERIS 2 15" 3-Way Loudspeaker Specifications:

  • Loudspeaker Type: Three-way, full-range, trapezoidal, vented bass, user rotatable horn
  • Operating Range: 55 Hz to 18 kHz (-10 dB)
  • Frequency Response: 70 Hz to 16 kHz (-3 dB)
  • Max Input Ratings:
    • 200W continuous, 500W program
    • 40 volts RMS, 80 volts momentary peak
  • Sensitivity (1W/1m): 100 dB (100 Hz to 12.5 kHz) free space
  • Maximum Output: 123 dB SPL / 129 dB SPL (peak)
  • Nominal Impedance: 8 ohms
  • Minimum Impedance: 5.7 ohms @ 130 Hz
  • Nominal –6dB Beamwidth: 60° H x 40° V (in vertical position)
  • Crossover Frequencies: 600 Hz / 3 kHz
  • Recommended Signal Processing: 60 Hz, 24 dB/octave Butterworth high pass filter
  • Drivers:
    • LF: 1x 15" cone
    • MF: 1x 6.5"
    • HF: 1x 1"
  • Driver Protection: DYNA-TECH protection circuitry
  • Input Connection: NL4-compatible locking connector with terminal strip in parallel
  • Controls: None
  • Enclosure: Trapezoidal (22.5° included angle) 18mm, 11-ply cross-laminated birch
  • Mounting/Rigging Provisions:
    • 13 x M10 threaded rigging fittings
    • 4 x M8 threaded fittings for third-party suspension products
  • Finish: Catalyzed polyester two-part paint
  • Grille: Powder-coated steel
  • Required Accessories: None
  • Supplied Accessories: None
  • Optional Accessories:
    • VB-Y35 U-shaped yoke bracket
    • VB-VY35 vertical yoke bracket
    • CMKIT ceiling mount kit
    • VB-TILT tilting bracket
    • VB-VST versatilt bracket
    • VFKIT vertical flying kit
    • M10EYBLTKIT 10mm eyebolt kit
    • STKIT seat track kit
  • Dimensions: 32.4" H x 18.4" W x 15.9" D (823 x 467 x 404 mm)
  • Weight: 59.5 lbs (27 kg)
