Biamp V2-26WT Dual 6.5" 2-Way Full-Range Speaker 200W, 70V/100V, White

The Community VERIS 2 V2-26WT is a two-way, full-range loudspeaker system with a built-in 200W autoformer that is suitable for use in a wide variety of fixed installations. With its powerful dual cone drivers, the V2-26WT provides additional low frequency and midrange output over that of its sister product, the V2-6. When paired with a subwoofer such as the V2-210S, a V2-26WT system will produce high-fidelity, broad spectrum sound that belies its modest size. In addition to distributed systems, the V2-26WT is an excellent choice for ancillary delay applications. When used to augment a front-of-house system in venues such as auditoria, theaters and houses of worship, delay loudspeakers can significantly even out the difference in sound pressure level from the front of the room to the rear of the room. Units may be positioned for underbalcony fill, overbalcony fill, or simply placed towards the rear of the seating areas. By deploying V2-26WT loudspeakers in such a manner, the system designer will have far greater control over relative levels and relative tonal response when commissioning and equalizing the installation. The V2-26WT may be mounted to a wall or ceiling surface using its included yoke bracket, suspended from its M6 threaded rigging points, or installed using a third-party mounting device. It includes a rotatable horn design that allows optimal dispersion in either vertical or horizontal mounting positions.

The V2-26WT's built-in 200W autoformer features taps at 200W, 100W, 50W and 25W.

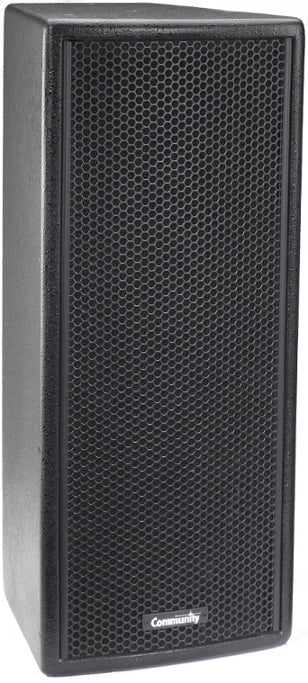

NOTE: Shown above in black in lieu of an available photo of the loudspeaker in white.

Community V2-26BT VERIS 2 Series 2x6.5" Two-Way Loudspeaker with Built-In 200W Autoformer Features:

• Built-in 200W autoformer for 70V/100V applications
• DYNA-TECH™ driver protection circuitry
• Ferrofluid-treated HF driver for improved heat dissipation
• Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability
• Constant-directivity rotatable square horn
• Frequency shaded woofers for smooth vertical pattern control
• Terminal strip and NL4-compatible connectors
• Mounting yoke included with 10° and 20° vertical standoffs

Community V2-26BT VERIS 2 Series 2x6.5" Two-Way Loudspeaker with Built-In 200W Autoformer Specifications

• Loudspeaker Type: Compact two-way, full-range, trapezoidal, vented bass, frequency shaded LF, user rotatable horn
• Operating Range: 70 Hz to 18 kHz (-10 dB)
• Frequency Response: 90 Hz to 16 kHz (±3 dB)
• Max Input Ratings:
  • 200W continuous, 500W program
  • 28.3 volts RMS, 56.7 volts momentary peak
• Sensitivity (1W/1m): 92 dB (100 Hz to 12.5 kHz) free space
• Maximum Output: 115 dB SPL / 121 dB SPL (peak)
• Nominal Impedance: 4 ohms
• Minimum Impedance: 3.5 ohms @ 220 Hz
• Nominal –6dB Beamwidth: 90° H x 70° V (in vertical position)
• Crossover Frequency: 1.3 kHz
• Recommended Signal Processing: 80 Hz, 24 dB/octave Butterworth high pass filter
• Drivers:
  • LF: 2x 6.5" cone
  • HF: 1x 1"
• Driver Protection: DYNA-TECH protection circuitry
• Input Connection: NL4-compatible locking connector with terminal strip in parallel
• Controls: None
• Enclosure: Trapezoidal (22.5° included angle) 18mm, 11-ply cross-laminated birch
• Mounting/Rigging Provisions:
  • 9x M6 threaded rigging fittings
  • 4x M6 threaded fittings for V-HSS and third-party suspension products
• Finish: Catalyzed polyester two-part paint
• Grille: Powder coated steel
• Required Accessories: None
• Supplied Accessories: Yoke-style mounting bracket with optional 10° and 20° standoffs that allow a 10° or 20° downward or upward vertical tilt
• Optional Accessories:
  • CMKIT ceiling mount kit
  • V-HSS handle and stand socket
  • VB-TILT tilting bracket
  • VB-VY26 vertical yoke bracket
  • M6EYBLTKIT 6mm eyebolt kit
• Dimensions: 22.5" H x 9.8" W x 10.1" D (573 x 249 x 258 mm)
• Weight (incl. bracket): 30.1 lbs (13.7 kg) with autoformer
