Apogee Sound AFI-8W White 15" Passive 2-Way Installation Loudspeaker, White

The Apogee Sound AFI-8W-WHITE is a fully arrayable loudspeaker capable of filling large churches, theaters, sports venues, and theme parks with clean, articulate full bandwidth sound. Available with a 60° x 40°, or 90° x 40°, high frequency horn patterns insuring that the AFI-8 works flawlessly in any room configuration. A bi-amplified version is also available.

Apogee Sound AFI-8W-WHITE Specifications:

• Drivers:
  • LF: 15" (381mm) driver
  • HF: 3" (76mm) voice coil, 2" (51mm) driver exit
• Dispersion: H: 90° x V: 40°
• Frequency Response (1m on axis): 46 Hz to 20 kHz ± 3 dB
• Max. SPL (@1m): 124 dB cont./130 dB peak
• PTML (Peak Transient Mechanical Limit): 141 dB
• Sensitivity (1W @ 1m): 98 dBspl/100 Hz to 4 kHz
• Nominal Impedance: 8O, each driver
• Max. Power Handling (cont./peak): 400 W cont./1600 W peak
• Dimensions:
  • Front: 20.25"(515mm) W x 30.25"(769mm) H
  • Rear: 13.3"(338mm) W x 30.25"(769mm) H
  • Depth: 15.1"(384mm)
• Weight: 77 lb. (35 kg)

NOTE:

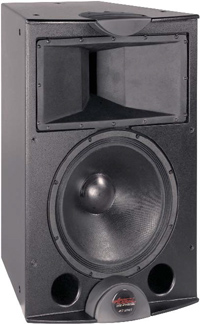

Image shown above is for illustrative purposes only; actual product comes in White. For more information on this and other products, contact your Sales Representative.
