Biamp E200-UMKB Universal Mounting Kit for ENTASYS 200 Speaker, Black

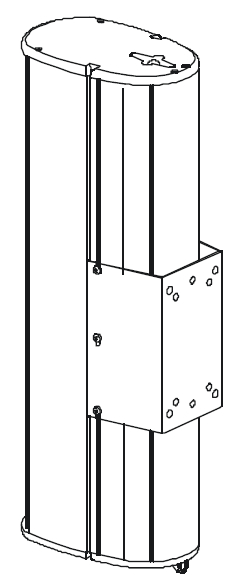

The Community E200-UMKB is a rugged bracket that can be used with ENTASYS 200 Series column loudspeakers. The bracket is designed to flush mount a single enclosure tightly against a wall or ceiling, or to accommodate third-party mounting brackets. This kit is available for use with Community models ENT203, ENT206, ENT212 and ENT220. Typically, use one E200-UMKB bracket per loudspeaker.

When attaching the E200-UMKB bracket to the loudspeaker, tighten all fasteners firmly, but do not over-tighten to avoid stripping the threads. Always use the safety attachment point at the top of the loudspeaker enclosure for a safety cable (not intended as a primary suspension point). The E200-UMKB is pre-drilled with standard spacings to accommodate third-party 30lb or 60lb working load mounting brackets.

All parts in the kit are engineered to provide a high margin of safety for mounting and suspending ENTASYS 200 Series loudspeakers. The brackets are manufactured of steel and covered with a durable dual layer powder-coat finish.

The E200-UMKB bracket is provided with the hardware required to attach it to the loudspeaker enclosure. No additional hardware is provided to attach the bracket to the mounting surface. No hardware is provided to attach suspension cables to the bracket. Such hardware must be supplied by the installer and should be sized and rated for the weight load of the loudspeaker. The installer is solely responsible for determining if the mounting surface is capable of safely supporting the weight load of the loudspeaker, and for selecting appropriate hardware to install it. The installer is solely responsible for determining if all rigging components that are used to suspend the enclosures are adequately sized and rated, and if the structure they are suspended from is capable of safely supporting the aggregate weight load.
