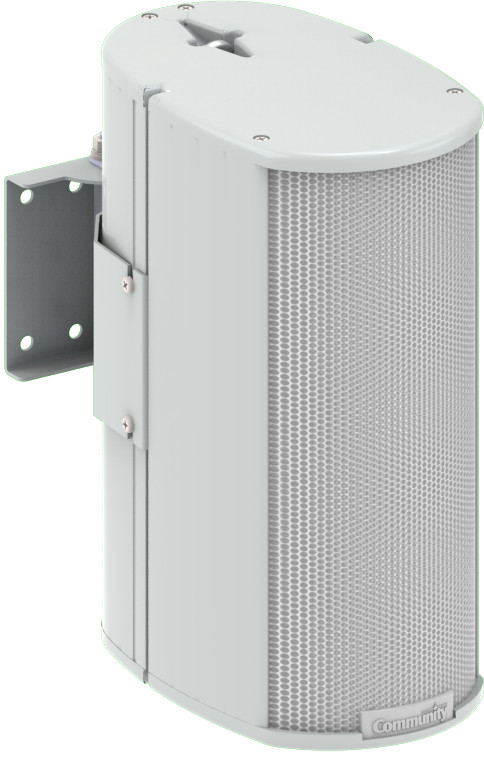

Biamp ENT203W 2-Way Compact Column Array Speaker, Weather Resistant, White

OUR PART #: ENT203-WHITE MFR #: ENT203W

Copied to clipboard

The Community ENT203 is a compact, all-weather column array loudspeaker housed in an attractive and heavy-duty extruded PVC enclosure. ...Read more

Biamp ENT203W 2-Way Compact Column Array Speaker, Weather Resistant, White Image 1
Biamp ENT203W 2-Way Compact Column Array Speaker, Weather Resistant, White
Our Price: $510.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$15/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Community ENT203 is a compact, all-weather column array loudspeaker housed in an attractive and heavy-duty extruded PVC enclosure. The smallest member of the ENTASYS 200 family, the ENT203 is an excellent choice when sonic clarity and predictable directional control are required from a diminutive and unobtrusive loudspeaker system. Typical applications include music and speech reinforcement for small houses of worship, hotel meeting rooms, transit stations, background and foreground music for hotels, resorts and themed attractions, and much more. Additionally, the ENT203 complements and supports larger loudspeakers when used for delay fill or area fill, particularly in reverberant environments where controlled directivity is vital for intelligibility. The ENT203 employs three high-power LF cone drivers and one Community CRE (Compact Ribbon Emulator) HF tweeter array in a two-way, single-amped configuration.

Community ENT203 Features:

  • Advanced passive crossover technology
  • Dynamic protection circuitry
  • Compact Ribbon Emulator high frequency technology for narrow, well-behaved vertical directivity control
  • All-weather construction for indoor/outdoor usage
  • Selectable low impedance or 70V/100V operation
  • Simple installation using the included pan-tilt mounting bracket
  • Tightly controlled vertical dispersion reduces harmful room reflections
  • Wide horizontal dispersion means fewer units cover agiven area
  • Clean, clear and powerful sonic output without the cost of bi-amplification
  • Available in standard black or white finishes, may also be painted to match room décor

Community ENT203 Specifications:

  • Loudspeaker Type: Two-way, compact column array loudspeaker, 16 Ohm or 70V/100V operation
  • Operating Range: 150 Hz to 22 kHz (-10 dB)
  • Frequency Response: 200 Hz to 20 kHz (-3 dB)
  • Max Input Ratings (16 Ohm): 75W continuous, 190W program, 35 volts RMS, 69 volts momentary peak
  • Autoformer Taps:
    • 70V: 30W, 15W, 7.5W, 3.75W, 1.88W
    • 100V: 30W, 15W, 7.5W, 3.75W
  • Sensitivity (1W/1m): 92 dB (200 Hz to 20 kHz) full space
  • Maximum Output: 111 dB SPL / 117 dB SPL (peak)
  • Nominal Impedance: 16 Ohms
  • Minimum Impedance: 18 Ohms @ 450 Hz
  • Vertical Coverage: 40° (2 kHz to 16 kHz +/-15°) @ 13m
  • Horizontal Coverage: 140° average (1 kHz - 10 kHz +/- 20°)
  • Crossover Frequency: 5000 Hz
  • Recommended Signal Processing: 150 Hz, 24dB/Oct high pass filter
  • Drivers:
    • LF: (3) 80mm long excursion mylar driver
    • HF: (1) 3-element Compact Ribbon Emulator
  • Driver Protection: Dynamic protection circuitry
  • Input Connection: NL4 Speakon-type connector for low impedance operation; and 8-position terminal strip for low impedance or constant voltage operation
  • Controls: None
  • Enclosure: Extruded, high gloss paintable PVC
  • Finish: Black or white
  • Grille: Dual-layer powder coated steel, black or white finish
  • Safety Features: Built-in safety eyebolt
  • Environmental: Outdoor Direct Exposure Certified IP54W per IEC529 for UV, moisture and salt spray
  • Required Accessories: High pass filter
  • Supplied Accessories: Pan-tilt bracket accommodating zero to 22.5° down-tilt and +/- 55° panning; and ABS plastic rain cover with integrated cable inlet and 1" (25.4mm) knockout for conduit ingress
  • Optional Accessories:
    • E200-UMK universal mounting kit
    • E200-SAK stand adapter kit
  • Dimensions:
    • Height: 10.3 inches (262 mm)
    • Width: 4.62 inches (117 mm)
    • Depth: 7.47 inches (189 mm)
  • Weight (without bracket): 9 lbs (4.1 kg)
