Community ENT203

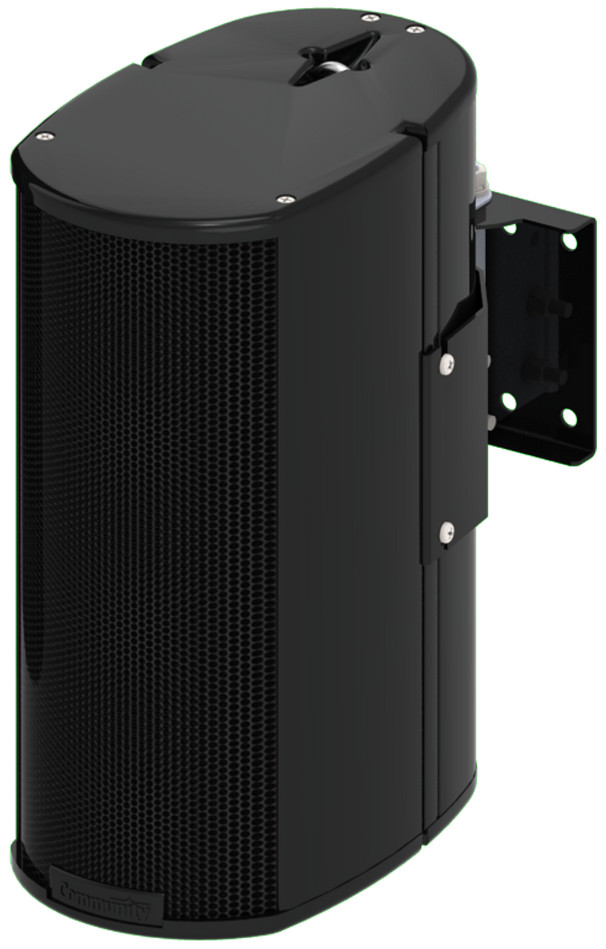

ENTASYS 200 Series 2-Way Compact Column Array Loudspeaker with (3) LF Drivers in Black

OUR PART #:  ENT203-BLACK

The Community ENT203 is a compact, all-weather column array loudspeaker housed in an attractive and heavy-duty extruded PVC enclosure.
Learn More
Our Price: $342.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community ENT203
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Community ENT203 is a compact, all-weather column array loudspeaker housed in an attractive and heavy-duty extruded PVC enclosure. The smallest member of the ENTASYS 200 family, the ENT203 is an excellent choice when sonic clarity and predictable directional control are required from a diminutive and unobtrusive loudspeaker system. Typical applications include music and speech reinforcement for small houses of worship, hotel meeting rooms, transit stations, background and foreground music for hotels, resorts and themed attractions, and much more. Additionally, the ENT203 complements and supports larger loudspeakers when used for delay fill or area fill, particularly in reverberant environments where controlled directivity is vital for intelligibility. The ENT203 employs three high-power LF cone drivers and one Community CRE (Compact Ribbon Emulator) HF tweeter array in a two-way, single-amped configuration.

Community ENT203 Features:

  • Advanced passive crossover technology
  • Dynamic protection circuitry
  • Compact Ribbon Emulator high frequency technology for narrow, well-behaved vertical directivity control
  • All-weather construction for indoor/outdoor usage
  • Selectable low impedance or 70V/100V operation
  • Simple installation using the included pan-tilt mounting bracket
  • Tightly controlled vertical dispersion reduces harmful room reflections
  • Wide horizontal dispersion means fewer units cover agiven area
  • Clean, clear and powerful sonic output without the cost of bi-amplification
  • Available in standard black or white finishes, may also be painted to match room décor

Community ENT203 Specifications:

  • Loudspeaker Type:  Two-way, compact column array loudspeaker, 16 Ohm or 70V/100V operation
  • Operating Range:  150 Hz to 22 kHz (-10 dB)
  • Frequency Response:  200 Hz to 20 kHz (-3 dB)
  • Max Input Ratings (16 Ohm):  75W continuous, 190W program, 35 volts RMS, 69 volts momentary peak
  • Autoformer Taps:
    • 70V:  30W, 15W, 7.5W, 3.75W, 1.88W
    • 100V:  30W, 15W, 7.5W, 3.75W
  • Sensitivity (1W/1m):  92 dB (200 Hz to 20 kHz) full space
  • Maximum Output:  111 dB SPL / 117 dB SPL (peak)
  • Nominal Impedance:  16 Ohms
  • Minimum Impedance:  18 Ohms @ 450 Hz
  • Vertical Coverage:  40° (2 kHz to 16 kHz +/-15°) @ 13m
  • Horizontal Coverage:  140° average (1 kHz - 10 kHz +/- 20°)
  • Crossover Frequency:  5000 Hz
  • Recommended Signal Processing:  150 Hz, 24 dB/Oct high pass filter
  • Drivers:
    • LF:  (3) 80mm long excursion mylar driver
    • HF:  (1) 3-element Compact Ribbon Emulator
  • Driver Protection:  Dynamic protection circuitry
  • Input Connection:  NL4 Speakon-type connector for low impedance operation; and 8-position terminal strip for low impedance or constant voltage operation
  • Controls:  None
  • Enclosure:  Extruded, high gloss paintable PVC
  • Finish:  Black or white
  • Grille:  Dual-layer powder coated steel, black or white finish
  • Safety Features:  Built-in safety eyebolt
  • Environmental:  Outdoor Direct Exposure Certified IP54W per IEC529 for UV, moisture and salt spray
  • Required Accessories:  High pass filter
  • Supplied Accessories:  Pan-tilt bracket accommodating zero to 22.5° down-tilt and +/- 55° panning; and ABS plastic rain cover with integrated cable inlet and 1" (25.4mm) knockout for conduit ingress
  • Optional Accessories:
    •  E200-UMK universal mounting kit
    • E200-SAK stand adapter kit
  • Dimensions:
    • Height:  10.3 inches (262 mm)
    • Width:  4.62 inches (117 mm)
    • Depth:  7.47 inches (189 mm)
  • Weight (without bracket):  9 lbs (4.1 kg)
