Community ENT206

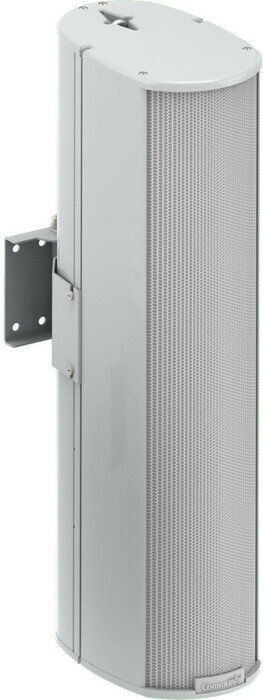

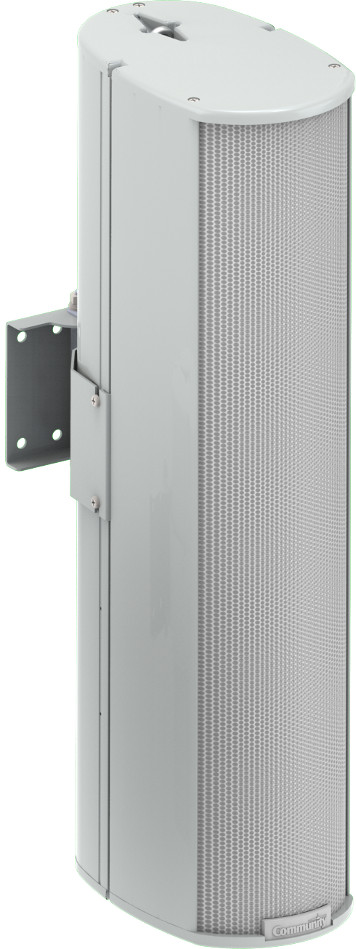

ENTASYS 200 Series 2-Way Compact Column Array Loudspeaker with (6) LF Drivers in White

OUR PART #:  ENT206-WHITE

The Community ENT206 is an all-weather, column array loudspeaker housed in an attractive, heavy duty extruded PVC enclosure.
Learn More
Our Price: $517.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community ENT206
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Community ENT206 is an all-weather, column array loudspeaker housed in an attractive, heavy duty extruded PVC enclosure. Double the height of the smaller ENT203, the ENT206 provides directional control at significantly lower frequencies than the ENT203, along with enough power to effectively cover much larger areas while still remaining unobtrusive. Ideally suited to applications such as music and speech reinforcement for reverberant houses of worship, hotel lobbies, assembly rooms, transit stations, indoor/outdoor swimming pools, outdoor smoking areas, bowling alleys, and much more, the ENT206 is a solid performer that belies its small size. Like the ENT203, the ENT206 also can be utilized to support larger systems for delay and area fill. The ENT206 employs six high-power LF cone drivers and two Community CRE (Compact Ribbon Emulator) HF tweeter arrays in a two-way, single-amped configuration.

Community ENT206 Features:

  • Advanced passive crossover technology
  • Dynamic protection circuitry
  • Compact Ribbon Emulator high frequency technology for narrow, well-behaved vertical directivity control
  • All-weather construction for indoor/outdoor usage
  • Selectable low impedance or 70V/100V operation
  • Simple installation using the included pan-tilt mounting bracket
  • Tightly controlled vertical dispersion reduces harmful room reflections
  • Wide horizontal dispersion means fewer units cover a given area
  • Clean, clear and powerful sonic output without the cost of bi-amplification
  • Available in standard black or white finishes, may also be painted to match room décor

Community ENT206 Specifications:

  • Loudspeaker Type:  Two-way, compact column array loudspeaker, 8 Ohm or 70V/100V operation
  • Operating Range:  120 Hz to 22 kHz (-10 dB)
  • Frequency Response:  180 Hz to 20 kHz (-3 dB)
  • Max Input Ratings (8 Ohm):  150W continuous, 375W program, 35 volts RMS, 69 volts momentary peak
  • Autoformer Taps:
    • 70V:  60W, 30W, 15W, 7.5W, 3.75W
    • 100V:  60W, 30W, 15W, 7.5W
  • Sensitivity (1W/1m):  93 dB (180 Hz - 20 kHz)
  • Maximum Output:  115 dB SPL / 121 dB SPL (peak)
  • Nominal Impedance:  8 Ohms
  • Minimum Impedance:  8.1 Ohms @ 12500 Hz
  • Vertical Coverage:  20° (2 kHz to 16 kHz +/-10°) @ 13m
  • Horizontal Coverage:  140° average (1 kHz - 10 kHz +/- 20°)
  • Crossover Frequency:  5000 Hz
  • Recommended Signal Processing:  120 Hz, 24 dB/Oct high pass filter
  • Drivers:
    • LF:  (6) 80mm long excursion mylar drivers
    • HF:  (2) 3-element Compact Ribbon Emulators
  • Driver Protection:  Dynamic protection circuitry
  • Input Connection:  NL4 Speakon-type connector for low impedance operation; and 8-position terminal strip for low impedance or constant voltage operation
  • Controls:  None
  • Enclosure:  Extruded, high gloss paintable PVC
  • Finish:  Black or white
  • Grille:  Dual-layer powder coated steel, black or white finish
  • Safety Features:  Built-in safety eyebolt
  • Environmental:  Outdoor Direct Exposure Certified IP54W per IEC529 for UV, moisture and salt spray
  • Required Accessories:  High pass filter
  • Supplied Accessories:  Pan-tilt bracket accommodating zero to 22.5° down-tilt and +/- 55° panning; and ABS plastic rain cover with integrated cable inlet and 1" (25.4mm) knockout for conduit ingress
  • Optional Accessories:
    • E200-UMK universal mounting kit
    • E200-SAK stand adapter kit
  • Dimensions:
    • Height:  19.9 inches (506 mm)
    • Width:  4.62 inches (117 mm)
    • Depth:  7.47 inches (189 mm)
  • Weight (without bracket):  15 lbs (6.8 kg)
