Product Overview

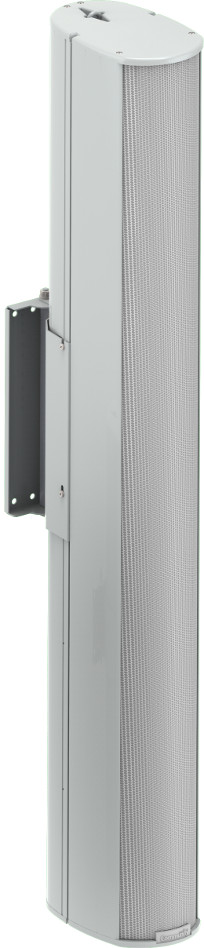

The Community ENT212 is an ENTASYS 200 series all-weather column line array housed in an attractive, heavy duty extruded PVC enclosure. Twice the height of the ENT206, the ENT212 provides vertical directional control at far lower frequencies than the ENT206, plus enough power to cover medium-sized venues as the primary system. The ENT212 excels in noisy environments - gymnasiums and other athletic venues are just two of many examples - while its high-fidelity response makes it suitable for more subtle applications such as scholastic auditoriums, houses of worship, jazz and folk music clubs, corporate AV presentations, and much more. The excellent vertical directivity conquers large, reverberant spaces, providing excellent intelligibility and musicality. With the addition of subwoofers, an ENT212 system is capable of meeting a vast range of requirements, from the soccer stadium to the performing arts center. The ENT212 employs twelve high-power LF cone drivers and four Community CRE (Compact Ribbon Emulator) HF tweeter arrays in a single-amped configuration that employs a 4-way frequency shaded crossover.
Community ENT212W Features:
- Advanced passive crossover technology
- Dynamic protection circuitry
- Compact Ribbon Emulator high frequency technology for narrow, well-behaved vertical directivity control
- All-weather construction for indoor/outdoor usage
- Selectable low impedance or 70V/100V operation
- Simple installation using the included pan-tilt mounting bracket
- Tightly controlled vertical dispersion reduces harmful room reflections
- Wide horizontal dispersion means fewer units cover a given area
- Clean, clear and powerful sonic output without the cost of bi-amplification
- Available in standard black or white finishes, may also be painted to match room décor
Community ENT212W Specifications:
- Loudspeaker Type: Two-way, column array loudspeaker, 8 Ohm or 70V/100V operation
- Operating Range: 100 Hz to 22 kHz (-10 dB)
- Frequency Response: 160 Hz to 20 kHz (-3 dB)
- Max Input Ratings (8 Ohm): 325W continuous, 800W program, 51 volts RMS, 102 volts momentary peak
- Autoformer Taps:
- 70V: 120W, 60W, 30W, 15W, 7.5W
- 100V: 120W, 60W, 30W, 15W
- Sensitivity (1W/1m): 96 dB (160 Hz - 20 kHz) full space
- Maximum Output: 121 dB SPL / 127 dB SPL (peak)
- Nominal Impedance: 8 Ohms
- Minimum Impedance: 8.5 Ohms @ 400 Hz
- Vertical Coverage: 15° (2 kHz - 16 kHz +/- 15°) @ 13m
- Horizontal Coverage: 140° average (1 kHz - 10 kHz +/- 20°)
- Crossover Frequency: 5000 Hz
- Recommended Signal Processing: 100 Hz, 24 dB/Oct high pass filter
- Drivers:
- LF: (12) 80mm long excursion mylar drivers
- HF: (4) 3-element Compact Ribbon Emulators
- Driver Protection: Dynamic protection circuitry
- Input Connection: NL4 Speakon-type connector for low impedance operation; and 8-position terminal strip for low impedance or constant voltage operation
- Controls: None
- Enclosure: Extruded, high gloss paintable PVC
- Finish: Black or white
- Grille: Dual-layer powder coated steel, black or white finish
- Safety Features: Built-in safety eyebolt
- Environmental: Outdoor Direct Exposure Certified IP54W per IEC529 for UV, moisture and salt spray
- Required Accessories: High pass filter
- Supplied Accessories: Pan-tilt bracket accommodating zero to 9° down-tilt and +/- 55° panning; and ABS plastic rain cover with integrated cable inlet and 1" (25.4mm) knockout for conduit ingress
- Optional Accessories:
- E200-UMK universal mounting kit
- E200-SAK stand adapter kit
- Dimensions:
- Height: 39.1 inches (993 mm)
- Width: 4.62 inches (117 mm)
- Depth: 7.47 inches (189 mm)
- Weight (without bracket): 28 lbs (12.7 kg)
