Community ENT220
ENTASYS 200 Series 2-Way Column Array Loudspeaker with (20) LF Drivers in White

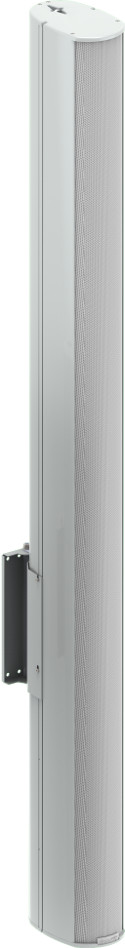

The Community ENT220 is an all-weather, column line array loudspeaker housed in an attractive, heavy duty extruded PVC enclosure.
Learn More
Our Price: $1,317.00
Write the first review.
Community ENT220
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Community ENT220 is an all-weather, column line array loudspeaker housed in an attractive, heavy duty extruded PVC enclosure. The largest member of the ENTASYS 200 family, the ENT220 provides exceptional directional control in the vertical axis to tame extremely difficult acoustic environments. With enough power to cover medium and large venues, a system of well-placed ENT220 columns is capable of providing intelligibility and superb musical reproduction, while barely being visible. Noisy environments, excessive reverberation, and other suboptimal acoustical conditions are handled effortlessly by the ENT220. Houses of worship, music venues and corporate AV presentations will benefit from the high performance and versatility of the ENT220. The ENT220 employs twenty high-power LF cone drivers and four Community CRE (Compact Ribbon Emulator) HF tweeter arrays in a single-amped configuration that employs a 5-way frequency shaded crossover.

Community ENT220 Features:

  • Advanced passive crossover technology
  • Dynamic protection circuitry
  • Compact Ribbon Emulator high frequency technology for narrow, well-behaved vertical directivity control
  • All-weather construction for indoor/outdoor usage
  • Selectable low impedance or 70V/100V operation
  • Simple installation using the included pan-tilt mounting bracket
  • Tightly controlled vertical dispersion reduces harmful room reflections
  • Wide horizontal dispersion means fewer units cover a given area
  • Clean, clear and powerful sonic output without the cost of bi-amplification
  • Available in standard black or white finishes, may also be painted to match room décor

Community ENT220 Specifications:

  • Loudspeaker Type:  Two-way, column array loudspeaker, 8 Ohm or 70V/100V operation
  • Operating Range:  80 Hz - 22 kHz (-10 dB)
  • Frequency Response:  130 Hz to 20 kHz (-3 dB)
  • Max Input Ratings (8 Ohm):  500W continuous, 1250W program, 63 volts RMS, 126 volts momentary peak
  • Autoformer Taps:
    • 70V:  120W, 60W, 30W, 15W, 7.5W
    • 100V:  120W, 60W, 30W, 15W
  • Sensitivity (1W/1m):  97dB (130 Hz - 20 kHz) full space
  • Maximum Output:  124 dB SPL / 130 dB SPL (peak)
  • Nominal Impedance:  8 Ohms
  • Minimum Impedance:  5.6 Ohms @ 320 Hz
  • Vertical Coverage:  15° (2 kHz - 16 kHz +/- 15°) @ 13m
  • Horizontal Coverage:  140° average (1 kHz - 10 kHz +/- 20°)
  • Crossover Frequency:  5000 Hz
  • Recommended Signal Processing:  80 Hz, 24 dB/Oct high pass filter
  • Drivers:
    • LF: (20) 80mm long excursion mylar drivers
    • HF:  (4) 3-element Compact Ribbon Emulators
  • Driver Protection:  Dynamic protection circuitry
  • Input Connection:  NL4 Speakon-type connector for low impedance operation; and 8-position terminal strip for low impedance or constant voltage operation
  • Controls:  None
  • Enclosure:  Extruded, high gloss paintable PVC
  • Finish:  Black or white
  • Grille:  Dual-layer powder coated steel, black or white finish
  • Safety Features:  Built-in safety eyebolt
  • Environmental:  Outdoor Direct Exposure Certified IP54W per IEC529 for UV, moisture and salt spray
  • Required Accessories:  High pass filter
  • Supplied Accessories:  Pan-tilt bracket accommodating zero to 9° down-tilt and +/- 55° panning; and ABS plastic rain cover with integrated cable inlet and 1" (25.4mm) knockout for conduit ingress
  • Optional Accessories:
    • E200-UMK universal mounting kit
    • E200-SAK stand adapter kit
  • Dimensions:
    • Height:  64.6 inches (1643 mm)
    • Width:  4.62 inches (117 mm)
    • Depth:  7.47 inches (189 mm)
  • Weight (without bracket):  41 lbs (18.6 kg)
