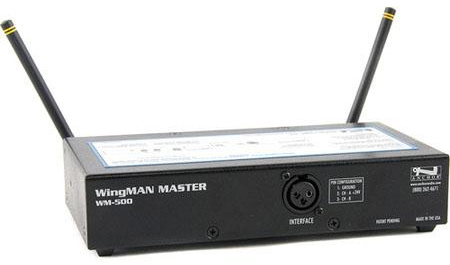

Anchor WM-500 Interface Station For Use with ProLink 500 and PortaCom Systems

The Anchor Audio WM-50 is an interface station that allows full duplex communication between ProLink 500 wireless belt packs and unbalanced party-line intercom systems such as the PortaCom. The WingMAN 500 includes a transceiver that is compatible with ProLink 500 belt packs. An integrated interface circuit makes it possible to interface the transceiver with party-line intercom systems with ease. The RX/TX LED glows solid when the wireless remote belt packs are out of range. The remote belt packs must move closer to the WingMAN 500 to operate.

Features

• Ease of use - setup in less then five minutes
• Full duplex communication
• Two wireless channels
• Two wired channels
• Interfaces with party line wired systems
• Dual antennas provide excellent duplex range

Specifications

• Wireless Range (line of sight): 200-250'
• Selectable Wireless Groups: 2
• Selectable Wired Groups: 2
• Frequency: 902 - 928 MHz
• Frequency Settings: 4 per Group
• Interface Connector: 3-pin female XLR
• Antenna: 1/2 wave length dipole
• Antenna Length: 4" (10.16 cm)
• Dimensions: 8.5" x 4.5" x 1.7" (21.6 x 11.4 x 4.32 cm)
• Weight: 2.4 lbs (1.08 kg)
• FCC License: Not required
• FCC ID: JBZWM-9000
