ETC/Elec Theatre Controls SELD40TI-0A-A
Selador Desire D40 Studio Tungsten LED in Black, Edison Connector

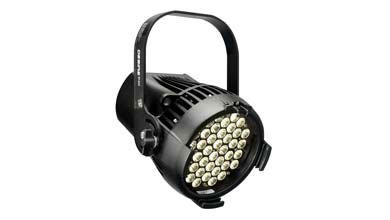

This is from ETC's Desire Series of lighting and is a Selador D40 Studio Tungsten wash fixture. This light contains forty 3000K LEDs for high-intensity, non-variable warm-white (tungsten-like) output. This model has a usage rating of IP20 (interior) that comes in a black finish with a Parallel blade, U-ground (Edison) connector.

Designers no longer have to compromise when it comes to white LED lighting! Installations from television and film to architecture and houses of worship – where color temperature and skin-tone rendering are critical – now have an easier, more precise way to light: the Selador® Desire Studio™ range of LED luminaires.

The Studio Tungsten arrays feature the new, all-white Luxeon Rebel ES LEDs and output large quantities of white light. The luminaires create specific color temperatures that mimic the light production of tungsten fixtures, while using a mere 140W of power. Studio Tungsten arrays produce fills of warm, white light with a 3200K color temperature. You can swap out power-hungry conventional fixtures for Studio Tungsten luminaires to get the brightest, tungsten-quality light.

ETC SELD40TI-0A-A Features:

• Studio Tungsten white-light configuration
• Three chassis: IP20-rated D40 and D60 for indoor use; IP66-rated D40XT for exterior use
• Native field angle of 18°
• 25°, 35°, 45°, and 75° round field diffuser lenses and 20°x40°, 30°x70°and 35°x80° oblong diffuser lenses available
• User-friendly control-interface with multiple modes and fixture settings for console-free operation
• DMX-In, -Out and -Thru
• Full RDM capability
• Up to 10 fixtures may be linked via power in/thru connectors per 15A circuit
• ‘Studio’ control mode allows fixtures to be operated with no DMX console required

ETC SELD40TI-0A-A Specifications:

GENERAL

• 40 LED variable white-light wash fixture
• ETL listed to UL1573 – the standard for stage and studio lighting units
• IP20-rated for indoor use
• Power and DMX in/thru connections for easy setup
• User-friendly control interface with multiple modes and fixture settings

PHYSICAL

• Rugged die-cast all-metal housing
• Easy access slots for secondary lenses and standard 7.5”

PAR accessories

• Available in black (standard), white or silver (optional) or custom colors (contact factory)
• Hanging yoke standard. Optional yoke/floor stand available

ELECTRICAL

• 100VAC to 240VAC 50/60 Hz universal power input
• Neutrik power in and thru connections
• Up to 10 fixtures may be linked via power in/thru connectors per 15A circuit
• Requires power from a non-dim source

LED*

• 50,000 hour LED life (50,000 hours to 70% intensity)
• 40 Luxeon® Rebel LED emitters
• Studio Tungsten uses Rebel ES white light emitters for higher output

*All LED sources experience some lessening of light output and some color shift over time. LED output will vary with thermal conditions. Based on the LED manufacturer’s B50 L70 specification, a Selador luminaire will achieve ~70% of its initial output after 50,000 hours of typical usage. In individual situations, LEDs will be used for different durations and at different levels. This can eventually lead to minor alterations in color performance, necessitating slight adjustment to presets, cues or programs.

COLOR

• Studio Tungsten™ provides good color rendering at very high brightness

OPTICAL

• Primary field angle of 17°
• Secondary lenses available for multiple beam spread options
• Fixtures ship with a 25° lens; additional lenses must be ordered separately
• Refer to accessories chart for lenses available

CONTROL

• DMX512 in and thru via five-pin XLR connectors
• Multiple control options including strobe and console free Master/Slave mode
• See DMX Control Table for additional information
• 15-bit virtual dimming engine provides smooth, high quality theatrical fades
• RDM functionality for address and setting changes

THERMAL

• Ambient operating temperature of -4° to 104°F (-20° to 40°C)
• Active electronic thermal management for droop-free operation
• Noiseless, fan-free convection cooling for acoustically sensitive installations
• Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing

PHYSICAL

• Weight* 14 lbs (6.4 kgs)
• Shipping Weight 17 lbs (7.8 kgs)

* Does not include mounting hardware.
