ETC/Elec Theatre Controls SELD40HI-1A-X

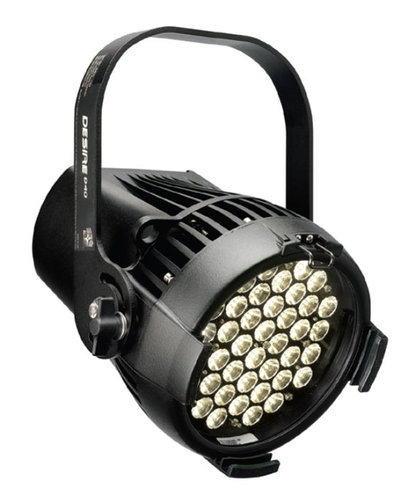

Selador Desire D40 Studio HD LED in White, Bare-End Lead

OUR PART #:  SELD40HI-1A-X

NOTE: Product shown in image is for illustrative purposes only. Actual product is  WHITE in appearance.
Learn More
Our Price: $1,915.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls SELD40HI-1A-X
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

NOTE: Product shown in image is for illustrative purposes only. Actual product is WHITE in appearance.

This is a D40 Studio™ HD wash fixture that is designed for high-intensity variable white-light output with broad spectrum richness and excellent color rendering. The D40 Studio HD™ combines warm white and cool white LEDs for variable color temperature mixing. Added to this are five carefully chosen LED colors from the Selador® x7 Color System™ to fill in the white LED spectral gaps. D40 Studio™ HD provides a rich, variable white light needed in an LED fixture. This fixture carries a usage rating of IP20 (interior), comes in a white finish with a bare-end power input lead.

ETC’s Desire™ D40 Studio™ lighting fixture uses the newest technology in high-output white light LEDs to create an ideal luminaire for video, film and other ‘white light only’ applications. Three different LED options give the user a choice for just the right white light output for the job. The D40 Studio offers a rugged die-cast enclosure, noiseless fan-free operation, multiple lens options and advanced user interface. The user interface enables easy configuration and specific features for video and film professionals. The fixture can be configured to operate under console control for studio systems or in stand-alone ‘no console required’ settings for location lighting.

NOTE: D40 Studio luminaires ship with hanging yoke, 25° secondary lens and Edison power input lead. C-clamps are not included.

ETC SELD40HI-1A-X Specifications:

General:

  • 40 LED variable white-light wash fixture
  • ETL listed to UL1573 – the standard for stage and studio lighting units
  • IP20-rated for indoor use
  • Power and DMX in/thru connections for easy setup
  • User-friendly control interface with multiple modes and fixture settings

Electrical:

  • 100VAC to 240VAC 50/60 Hz universal power input
  • Neutrik power in and thru connections
  • Up to 10 fixtures (15A max) may be linked via power thru connector
  • Requires power from a non-dim source

LED*:

  • 50,000 hour LED life (50,000 hours to 70% intensity)
  • 40 Luxeon® Rebel LED emitters
  • Studio Daylight and Studio Tungsten use Rebel ES white light emitters for higher output

Color:

  • Studio HDâ„¢ array uses warm and cool white-light emitters with additional deep-color emitters
  • Studio HD produces variable white light with broad spectrum richness
  • Studio HD beautifully illuminates skin tones and other objects for natural appearance and high color rendering
  • Studio Tungstenâ„¢ and Studio Daylightâ„¢ provide good color rendering at very high brightness

Optical:

  • Primary field angle of 17°
  • Secondary lenses available for multiple beam spread options
  • Fixtures ship with a 25° lens; additional lenses must be ordered separately

Control:

  • DMX512 in and thru via five-pin XLR connectors
  • Multiple control options including strobe and consolefree Master/Slave mode
  • See DMX Control Table for additional information
  • 15-bit virtual dimming engine provides smooth, high quality theatrical fades
  • RDM functionality for address and setting changes

Thermal:

  • Ambient operating temperature of -4° to 104°F (-20° to 40°C)
  • A ctive electronic thermal management for droop-free operation
  • Noiseless, fan-free convection cooling for acoustically sensitive installations
  • Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing

*All LED sources experience some lessening of light output and some color shift over time. LED output will vary with thermal conditions. Based on the LED manufacturer’s B50 L70 specification, a Selador luminaire will achieve ~70% of its initial output after 50,000 hours of typical usage. In individual situations, LEDs will be used for different durations and at different levels. This can eventually lead to minor alterations in color performance, necessitating slight adjustment to presets, cues or programs.
