ETC/Elec Theatre Controls SELD40DI-0A-C

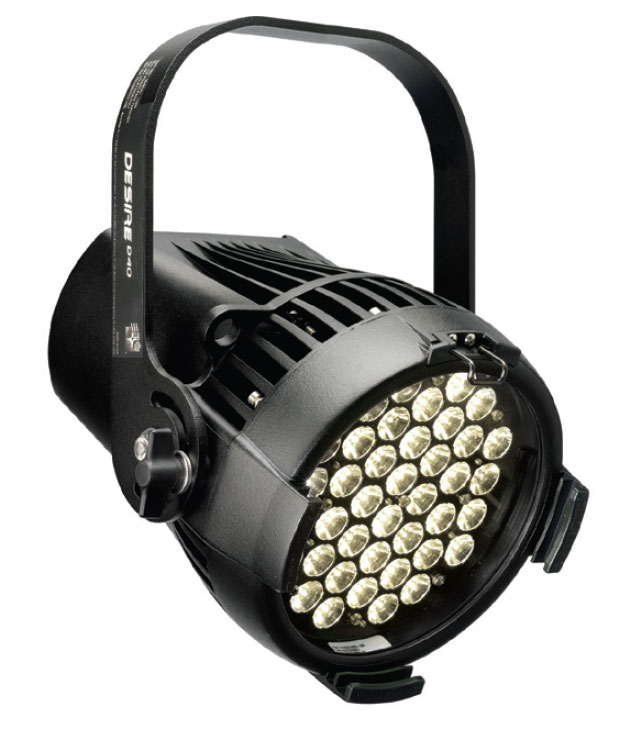

Desire D40 Studio Daylight LED in Black, Twist-Lock Connector

OUR PART #:  SELD40DI-0A-C

This is from ETC's Desire Series of lighting and is a Selador D40 Studio Daylight wash fixture.
Learn More
Our Price: $1,815.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls SELD40DI-0A-C
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This is from ETC's Desire Series of lighting and is a Selador D40 Studio Daylight wash fixture. This light contains forty 5600K LEDs for high-intensity, non-variable cool-white (daylight) output. This model is in a black finish with a power input cable that is a 5' PowerCon™ to grounded 20A twistlock connector.

Designers no longer have to compromise when it comes to white LED lighting! Installations from television and film to architecture and houses of worship – where color temperature and skin-tone rendering are critical – now have an easier, more precise way to light: the Selador® Desire Studio™ range of LED luminaires.

The Studio Daylight arrays feature the new, all-white Luxeon Rebel ES LEDs and output large quantities of white light. The luminaires create specific color temperatures that mimic the light production of HMI daylight, while using a mere 140W of power.

ETC SELD40DI-0A-C Features:

  • Studio Daylight white-light configurations
  • Three chassis: IP20-rated D40 and D60 for indoor use; IP66-rated D40XT for exterior use
  • Native field angle of 18°
  • 25°, 35°, 45°, and 75° round field diffuser lenses and 20°x40°, 30°x70°and 35°x80° oblong diffuser lenses available
  • User-friendly control-interface with multiple modes and fixture settings for console-free operation
  • DMX-In, -Out and -Thru
  • Full RDM capability
  • Up to 10 fixtures may be linked via power in/thru connectors per 15A circuit
  • ‘Studio’ control mode allows fixtures to be operated with no DMX console required

ETC SELD40DI-0A-C Specifications:

GENERAL

  • 40 LED variable white-light wash fixture
  • ETL listed to UL1573 – the standard for stage and studio lighting units
  • IP20-rated for indoor use
  • Power and DMX in/thru connections for easy setup
  • User-friendly control interface with multiple modes and fixture settings

PHYSICAL

  • Rugged die-cast all-metal housing
  • Easy access slots for secondary lenses and standard 7.5”

PAR accessories

  • Available in black (standard), white or silver (optional) or
    custom colors (contact factory)
  • Hanging yoke standard. Optional yoke/floor stand available

ELECTRICAL

  • 100VAC to 240VAC 50/60 Hz universal power input
  • Neutrik power in and thru connections
  • Up to 10 fixtures may be linked via power in/thru connectors per 15A circuit
  • Requires power from a non-dim source

LED*

  • 50,000 hour LED life (50,000 hours to 70% intensity)
  • 40 Luxeon® Rebel LED emitters
  • Studio Daylight uses Rebel ES white light emitters for higher output
  • *All LED sources experience some lessening of light output and some color shift over time. LED output will vary with thermal conditions. Based on the LED manufacturer’s B50 L70 specification, a Selador luminaire will achieve~70% of its initial output after 50,000 hours of typical usage. In individual situations, LEDs will be used for different durations and at different levels.This can eventually lead to minor alterations in color performance, necessitating slight adjustment to presets, cues or programs.

COLOR

  • Studio Daylight™ provides good color rendering at very high brightness

OPTICAL

  • Primary field angle of 17°
  • Secondary lenses available for multiple beam spread options
  • Fixtures ship with a 25° lens; additional lenses must be ordered separately
  • Refer to accessories chart for lenses available

CONTROL

  • DMX512 in and thru via five-pin XLR connectors
  • Multiple control options including strobe and console free Master/Slave mode
  • See DMX Control Table for additional information
  • 15-bit virtual dimming engine provides smooth, high quality theatrical fades
  • RDM functionality for address and setting changes

THERMAL

  • Ambient operating temperature of -4° to 104°F (-20° to 40°C)
  • Active electronic thermal management for droop-free operation
  • Noiseless, fan-free convection cooling for acoustically sensitive installations
  • Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing

PHYSICAL

  • Weight* 14 lbs (6.4 kgs)
  • Shipping Weight 17 lbs (7.8 kgs)
