Video Accessory Corp 11-111-125
Video Quad Composite DA

OUR PART #  11-111-125

Our Price: $373.98
List Price: $377.00
In Stock

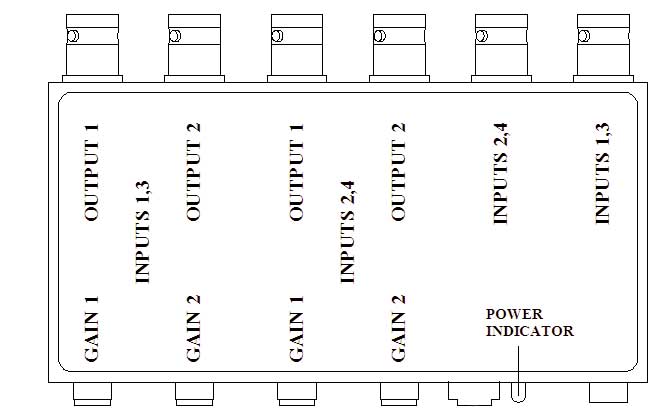

Composite video distribution amplifier with Unity gain, BNC connectors, 12V AC with P5 power connector.

Specifications:

  • Configuration: Four 1X2 Composite Video Distribution Amplifiers; each Channel Has:
  • Bandwidth: DC - 200 MHz @ -3dB, fully loaded over full voltage range
    (1Vpp input signal, 0V DC offset)
  • Input Coupling: DC
  • Input Signal Level: 0.5 - 2Vpp (within -1V to +1V range from ground)
  • Impedance: 75 Ohm (Input and Output)
  • Input Connector(s): 75 Ohm BNC (total of 4)
  • Output Connectors: 75 Ohm BNC (total of 8)
  • Gain: Unity - Unity
    Global Variable - 0.75X - 1.75X
    Individual - 0.75X - 1.75X
  • Output Series Impedance: 75 Ohms
  • Package: Solid epoxy block 2.2” x 4.4” x 1.4”
    (not including connectors)
  • Mounting: Two threaded 6-32 inserts
  • Power: 12V AC - 11-13V AC (grounded or ungrounded)
    (2.1mm P5 connector)
    <350mA input current
    FlexPwr - 10-28V AC (ungrounded) or
    12-32V DC (grounded or ungrounded)
    2-pin header (Mating connector Phoenix Contact #1881325)
    <230mA input current @ 12V DC
    <270mA input current @ 10V AC
    (All currents measured with 2Vpp 1kHz sine wave fully loaded)
  • Operating Temperature: 12V AC -40C to + 50C
    FlexPwr -40C to + 80 C
  • Operating Humidity: 0% - 95%
  • Shipping Weight: 3 lb

Click to download

Video Accessory Corp 11-111-125
Video Quad Composite DA

OUR PART #  11-111-125

Product Information:

Composite video distribution amplifier with Unity gain, BNC connectors, 12V AC with P5 power connector.

Specifications:

  • Configuration: Four 1X2 Composite Video Distribution Amplifiers; each Channel Has:
  • Bandwidth: DC - 200 MHz @ -3dB, fully loaded over full voltage range
    (1Vpp input signal, 0V DC offset)
  • Input Coupling: DC
  • Input Signal Level: 0.5 - 2Vpp (within -1V to +1V range from ground)
  • Impedance: 75 Ohm (Input and Output)
  • Input Connector(s): 75 Ohm BNC (total of 4)
  • Output Connectors: 75 Ohm BNC (total of 8)
  • Gain: Unity - Unity
    Global Variable - 0.75X - 1.75X
    Individual - 0.75X - 1.75X
  • Output Series Impedance: 75 Ohms
  • Package: Solid epoxy block 2.2” x 4.4” x 1.4”
    (not including connectors)
  • Mounting: Two threaded 6-32 inserts
  • Power: 12V AC - 11-13V AC (grounded or ungrounded)
    (2.1mm P5 connector)
    <350mA input current
    FlexPwr - 10-28V AC (ungrounded) or
    12-32V DC (grounded or ungrounded)
    2-pin header (Mating connector Phoenix Contact #1881325)
    <230mA input current @ 12V DC
    <270mA input current @ 10V AC
    (All currents measured with 2Vpp 1kHz sine wave fully loaded)
  • Operating Temperature: 12V AC -40C to + 50C
    FlexPwr -40C to + 80 C
  • Operating Humidity: 0% - 95%
  • Shipping Weight: 3 lb

Click to download
