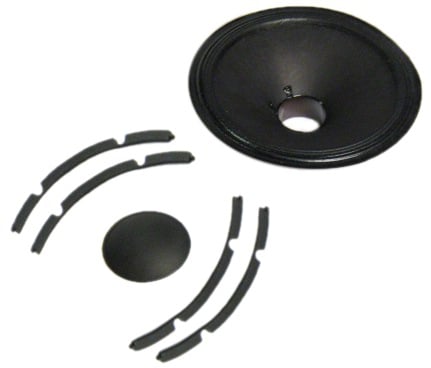

Turbosound RC-1219 Recone Kit for LS1219 Woofer

Recone kit for LS-1219 woofer, used in models:

• TXD-121
• TXD-12M
• TXP-121

TXD-121

The TXD-121 is a compact trapezoidal passive two-way loudspeaker enclosure designed for use in a wide variety of live sound, fixed installation and mobile DJ applications that require professional sound quality in an easily transportable format.

It consists of a 12" reflex-loaded low frequency driver and a 1" high frequency compression driver on a 70ºH x 40ºV dispersion HF horn in an optimally tuned trapezoidal enclosure. These high-grade components are matched with an internal second order passive crossover network to ensure a seamless transition between the HF and LF drivers.

The crossover incorporates a two stage thermal overload protection system which prevents damage to the high frequency driver, reacting instantly to large transient peaks while still allowing wide dynamic range to be maintained. Although the protection system is transparent at normal operating levels, as the level increases the signal is gradually and imperceptibly compressed once the critical threshold has been reached.

The cabinet is constructed from 15mm (5/8") birch plywood, screwed and glued together for maximum rigidity. A pole mount socket is fitted for use with optional 35mm poles and loudspeaker stands. Two recessed flush handles are provided for easy lifting and carrying and four rubber feet are fitted to the bottom of the cabinet. A grey powder-coated perforated steel mesh grille protects the drivers from damage.

M10 rigging points are provided on the top and rear of the cabinet to enable it to be suspended and angled in permanent installations using shoulder eyebolts. M8 rigging points are provided on the rear of the cabinet for use with Turbosound wall and ceiling brackets. Two Neutrik Speakon NL4MP speaker connectors are located on the rear panel, providing input and parallel connections to additional TXD series cabinets or bass enclosures.

TXD-12M

The TXD-12M is a compact passive two-way wedge monitor enclosure designed for use in a wide variety of live sound, fixed installation and mobile DJ applications that require professional sound quality in an easily transportable format

It consists of a 12" reflex-loaded low frequency driver and a 1" high frequency driver on a 40ºH x 70ºV dispersion HF horn in an optimally tuned enclosure. These high grade components are matched with a third order passive crossover network to ensure a seamless transition between the HF and LF devices.

The crossover network incorporates a two-stage thermal overload protection system which prevents damage to the high frequency driver, reacting instantly to large transient peaks while still allowing wide dynamic range to be maintained. Although the protection system is transparent at normal operating levels, as the level increases the signal is gradually and imperceptibly compressed once the critical threshold has been reached.

The cabinet is constructed from 15mm (5/8") birch plywood, screwed and glued together for maximum rigidity. Its symmetrical shape allows the monitor to be inverted and used as left/right mirror image pairs.

In addition to its primary function as a floor monitor, the TXD-12M is also suitable for front-of-house applications and can be used with the integral pole mount socket on top of optional 35mm poles and loudspeaker stands. Two recessed flush handles are provided for easy lifting and carrying, and eight rubber feet are fitted. A grey powder-coated perforated steel mesh grille protects the drive units from damage.

A Neutrik Speakon NL4MP connector is located at each end of the cabinet on recessed panels, providing input and parallel link connections to additional TXD series monitors.

TXP-121

The TXP-121 is a compact trapezoidal self-powered two-way loudspeaker enclosure designed for use in a wide variety of live sound, corporate rental and mobile DJ applications that require professional sound quality in an easily transportable format.

It consists of a 12” reflex-loaded low frequency driver and a 1” high frequency compression driver on a 70°H x 40°V dispersion HF horn in an optimally tuned trapezoidal enclosure, together with an integrated Class D amplifier module.

The Class D amplifier delivers abundant power to the drive units, separating the frequency bands via a passive crossover network, with optimum headroom being governed by the built-in fast acting limiter circuits. The crossover incorporates a twostage thermal overload protection system which prevents damage to the high frequency driver, reacting instantly to large transient peaks while still allowing wide dynamic range to be maintained.

All operating controls and indicators are provided on the rear panel, including adjustable gain control, power LED, and signal and limit LEDs. Balanced 3-pin XLRs provide input and link out connections from mixing consoles and to additional powered TXP enclosures. A two-stage high-pass filter is user-selectable for stand alone use, or for correct integration when used with a subwoofer. Mains power is supplied via an IEC mains connector with integrated fuseholder.

The trapezoidal cabinet is constructed from 15mm (5/8”) birch plywood, and the symmetrical 45° angled sides enable its use as a compact wedge monitor. A dual angle pole mount socket is fitted for FOH use with optional 35mm poles and loudspeaker stands. Two recessed flush handles are provided for easy lifting and carrying and four rubber feet are fitted to the bottom of the cabinet. A powder-coated perforated steel mesh grille protects the drive units from damage.

Rigging points are provided on the top and rear of the cabinet to enable the TXP-121 to be suspended in permanent installations.
