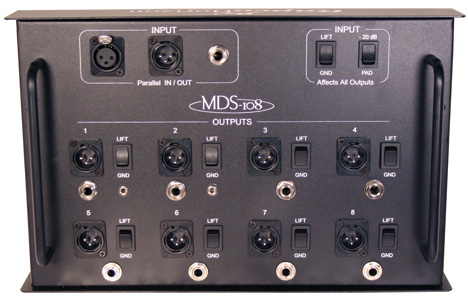

Rapco MDS-108 Media Distribution System

RapcoHorizon's MDS media distribution system is perfect for press conferences or any situation requiring a single mic signal to be "split" multiple times. Its features include a rugged steel box, paralleled XLR female, XLR male, and 1/4" TRS inputs for balanced or unbalanced line level signals. Outputs are discrete isolated XLR males paralleled to 1/4" TRS. Channels 1 and 2 also have 3.5mm stereo outputs. Due to the D.C. blocking characteristics of a transformer, the isolated outputs will not pass phantom power. Handles on both sides of the box provide easy movement and connector protection. The connectors are also recessed to resist damage. "Loop" multiple boxes for a total of up to 24 channels.

Features:

• The MDS media distribution system is perfect for press conferences or any situation requiring a single mic signal to be "split" multiple times
• Its features include a rugged steel box, paralleled XLR female, XLR male, and 1/4 inch TRS inputs for balanced or unbalanced line level signals
• Outputs are discrete isolated XLR males paralleled to 1/4 inch TRS, channels 1 and 2 also have 3.5mm stereo outputs
• Due to the D.C. blocking characteristics of a transformer, the isolated outputs will not pass phantom power
• Handles on both sides of the box provide easy movement and connector protection
• The connectors are also recessed to resist damage
• "Loop" multiple boxes for a total of up to 24 channels
• Superior quality connectors
• Individually tested for performance and quality

Specifications:

• Approximate size: 13-3/4" W x 8-7/8" H x 3-3/4" D
• The following is a list of connectors on this item:
  • (1) XLR-F panel mount
  • (9) XLR-M panel mount
  • (9) 1/4" stereo panel mount
  • (8) CXF Transformer
  • (2) 3.5mm (1/8") Stereo panel mount
  • (2) DBT Transformer
  • (10) Ground lift switches
