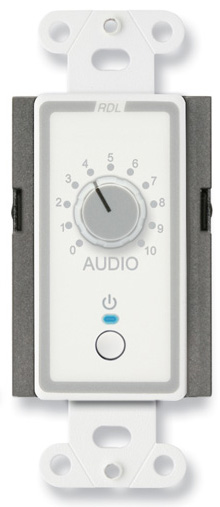

Radio Design Labs D-ECR1L
Power On/Off & Level Remote Control in White

OUR PART #  D-ECR1L

Our Price: $102.74
List Price: $137.41
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Radio Design Labs' D-ECR1L is a wall-mounted remote control that provides A/V system power-up and power-down.  This control directly interfaces with RDL products equipped with green coded RJ45 control jacks, such as the FP-ECC1 Energy Conservation Controller.  The D-ECR1L provides a momentary push-button for power control and an LED power status indicator.  The indicator glows yellow when the associated system power is in the standby mode.  Pressing the soft power button toggles the system power on.  The indicator glows blue when system power is on.  Pressing the button when the power is on returns the system power to standby.  If the host controller is set to allow full power-down, holding the button for 3 seconds takes the system out of standby and turns it off.  The system remains off until the button is again pushed, placing the system in standby.

The D-ECR1L includes a single-turn level control providing 0 to 10 V VCA linear control voltage through the host controller.  This control is normally used to adjust the master audio volume of an A/V system.  Both remote controls connect with their host controllers through twisted-pair cable terminated in RJ45 connectors.

The D-ECR1L features a standard RDL white front panel. This finish matches other RDL remote selectors and jack plates for a visually appealing installation of multiple controls.

Features:

  • Remote System Power On/Off Control Panel
  • Level Control Provides 0 to 10 Vdc at Controller
  • Pushbutton Toggles Power On and Off/Standby
  • LED Power Indicator Color Indicates Mode
  • Blue LED: Active System Power
  • Yellow LED: Standby (System Power Off)
  • Red LED: Power Off and Auto Power-Up Disabled
  • Flashing Red LED: Emergency Override
  • Direct Control of Modules with RJ45 Power Control
  • Connection to Controller Using Twisted-Pair Wiring

Specifications:

  • Level Control: 0 to 10 Vdc at controller, linear, single-turn
  • Power button: Momentary
  • Indicator:
    Red = Power Off
    Yellow = Power Standby
    Blue = Power On
  • Mounting: Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
  • Dimensions: 4.1" H x 1.44" D (without knob), 2" D (with knob), 1.7" W (10.4 x 3.7-5 x 4.33 cm)
