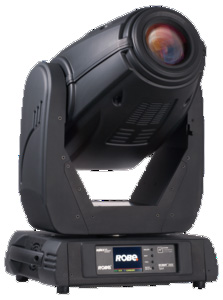

Robe Lighting, Inc ROBIN-300E-SPOT
Moving Head Spot

OUR PART #  ROBIN-300E-SPOT

Call for price! Not available online.


Onboard is a package of specially designed modular features including a large 10° – 40° zoom, CMY+CTO, static and rotating gobo wheels, colour wheel, frost, iris and many more.

ROBIN® 300E Spot light is a neat, punchy profile fixture with superior functions such as a large linear zoom and dynamic hot-spot control, ideal for a wide range of applications.

A full package of rotating and static gobos plus full CMY+CTO and colour wheels give a standard base for any show.  Advanced features like variable frost, linear iris, rotating prism and speedy mechanical shutters provide subtle and detailed in-tuning.

Source:

  • Lamp: Compact high-presure metal halide lamp
  • Base: PGJX28
  • Approved model: Philips MSD Gold 300/2 MiniFastFit
  • Control: Automatic and remote on/off
  • Ballast: Electronic

Optical System:

  • Dichroic glass reflector for maximising the light efficiency
  • Beam angle: 10° – 40°

Electrical Specifications:

  • Power supply: Electronic auto-ranging
  • Input voltage range: 100–240 V, 50/60 Hz
  • Power consumption: 450 VA at 230 V/50 Hz

Mechanical Specifications:

  • Height: 516 mm (20.3?) – head in horizontal position
  • Width: 433 mm (17.0?)
  • Depth: 470 mm (18.5?)
  • Weight: 20 kg (44.1 lbs)

Thermal:

  • Maximum ambient temperature: 45 °C (104 °F)
  • Maximum surface temperature: 80 °C (176 °F)

Static Gobos:

  • Metal gobos - outside diameter: 26.9 mm, image diameter: 22.5 mm, aluminium, thickness: 0.5 mm

Rotating Gobos:

  • Glass gobos - outside diameter: 26.8 mm, image diameter: 22.0 mm, thickness: 1.1 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass

Control and Programming:

  • Setting & Addressing: ROBE Navigation System 2 (RNS2)
  • Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2
  • Control channels: 23, 25, 32
  • 3 DMX protocol modes
  • 3-editable programs, each up to 100 steps
  • Stand-alone operation

Display:

  • QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC
  • Pan/Tilt resolution: 16bit
  • Movement control: Tracking and vector
  • Colour wheel positioning: 8 or 16bit
  • Static gobo wheel positioning: 8 or 16bit
  • Rotating gobos: 8 or 16bit
  • Iris: 8 or 16bit
  • Frost: 8bit
  • Focus: 8 or 16bit
  • Dimmer: 8 or 16bit
  • Ethernet port: Art-Net protocol, ready for ACN
  • Data in/out: Locking 3-pin & 5-pin XLR
  • Built-in analyser for easy fault finding
  • Optional wireless version available: CRMX™ technology from Lumen Radio

Electromechanical Effects:

  • Cyan: 0–100%
  • Magenta: 0–100%
  • Yellow: 0–100%
  • CTO: 0–100%
  • Hot-spot control: Hot-or-not-spot
  • Colour wheel: 7 replaceable ?SLOT&LOCK? dichroic filters + open, trapezoid shape
  • Static Gobo wheel: 9 replaceable ?SLOT&LOCK? metal gobos + open
  • Rotating Gobo wheel: 7 rotating, indexable, replaceable ?SLOT&LOCK? dichroic and glass gobos + open
  • Iris: Motorized, stepless, up to 3 Hz
  • Prism: 3-facet 11° indexable prism rotating in both directions at different speeds
  • Frost effect: Separate, variable
  • Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobbing ?ZAP?
  • Motorized zoom and focus
  • Pan: 540°
  • Tilt: 280°

Rigging:

  • Mounting points: 2 pairs of 1/4-turn locks
  • Fixation option: Pan/Tilt-lock mechanism
  • 2x Omega bracket with 1/4-turn quick locks
  • Safety chain/rope attachment point
