Philips Color Kinetics 109-000026-00 sPDS-4780ca 24V 480W Multi-Output Power/Data Supply

Philips Color Kinetics' sPDS-480ca 24V is a power/data supply designed for large-scale Ethernet LED lighting installations using Chromasic fixtures.

The sPDS-480ca 24 V delivers 480 watts of output via eight 60-watt ports and automatically accommodates input voltages ranging from

100 VAC to 240 VAC. Short-circuit protection prevents device failure due to incorrectly wired fixtures. The standard IEC power inlet accepts both US and international power cords.

With onboard controls, sPDS-480ca 24 V incorporates automatic fixture discovery and testing, eliminating the need for additional addressing tools or software. sPDS-480ca 24 V features a backlit LCD for easy menu viewing.

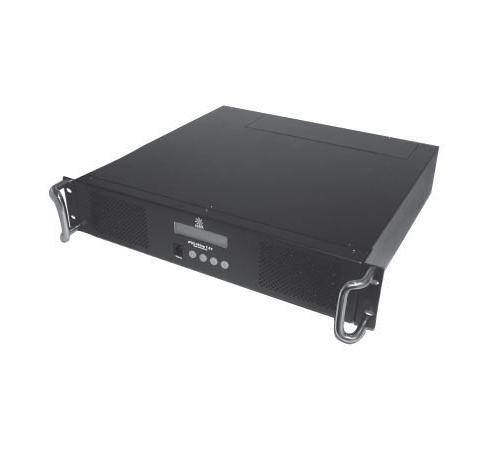

Housed in a 2U rack-mountable enclosure, sPDS-480ca 24 V includes rack handle and surface-mount brackets, for versatile mounting options.

Over-temperature detection and selectable shutdown options protect sPDS-480ca 24 V against operation beyond its rated temperature specification. Variable speed fans keep noise levels low and include serviceable air filters.

Features:

• Delivers 480 watts of output via eight 60-watt ports, and automatically accommodates input voltages ranging from 100 VAC to 240 VAC.
• Short-circuit protection prevents device failure due to incorrectly wired fixtures.
• Onboard controls offer automatic fixture discovery and testing, eliminating the need for additional addressing tools or software.
• Housed in a 2U rack-mountable enclosure including rack handles and surface mount brackets for versatile mounting options.
• Over-temperature detection and selectable shutdown options protect against operation beyond rated temperature specification. Variable-speed fans keep noise levels low and include serviceable air filters.

Electrical Specifications:

• Input Voltage: 100 – 240 VAC, auto-switching, 50 / 60 Hz
• Maximum Input Current: 6 A at 100 VAC, 5 A at 120 VAC, 2.5 A at 240 VAC
• Power Output: 24 VDC, 480 W (60 W per power port)
• Fuse Rating: (8) 4 A, 125 V, 5 x 20 fast blow fuses

Physical Specifications:

• Dimensions: 3.5" H x 19" W x 18" D (89 x 483 x 457 mm)
• Weight: 26.5 lbs (12 kg)
• Construction: 2RU rack and surface-mountable aluminum chassis
• Finish: Black matte
• Connectors:
  • - Data: RJ-45 input connector
  • - Power Output: (8) 4-pin output receptacles
  • - Power Input: IEC 320 receptacle type C13, locking clamp
• Temperature Ranges
  • 14° – 122° F (-10° – 50° C) Operating
  • 14° – 122° F (-10° – 50° C) Startup
  • -40° – 176° F (-40° – 80° C) Storage
• Humidity: 0 – 95%, non-condensing
• Cooling: (2) speed-configurable fans, with serviceable air filters
• Airflow: Front panel input, back panel output
• Heat Dissipation: 25% of total power input
• Data Input Source: Philips full range of Ethernet controllers, or KiNETcompatible* third-party Ethernet controllers
  • *KiNET is the Ethernet lighting protocol from Philips Color Kinetics
