JoeCo BBR64-DANTE
64 Track Blackbox DANTE Recorder

OUR PART #:  BBR64-DANTE

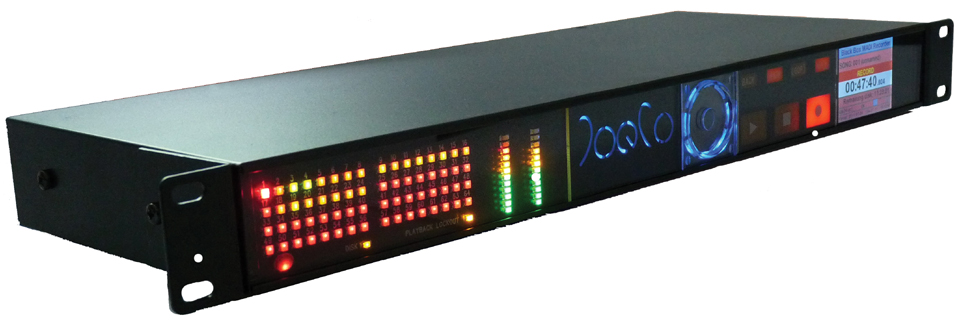

The new BLACK BOX BBR64-DANTE RECORDER is designed to record and replay up to 64 channels of audio data from a Dante network.
Learn More

Call for info!

Similar Products

The new BLACKBOX BBR64-DANTE RECORDER is designed to record and replay up to 64 channels of audio data from a Dante network. It records at 44.1kHz and 48kHz directly to Broadcast WAV files on an external USB2 drive. (Higher sample rate recording is also accommodated at a reduced track count.)

The BBR64-DANTE connects to any Dante™-enabled device from a range of console and converter manufacturers including Allen&Heath, Yamaha, MIDAS, DiGiCo and Focusrite to name but a few. Designed to support standard network components and switches, it can also record 8 channels of analogue (balanced line in) alongside 56 channels of Dante for capturing audience and ambience.

The BBR64-DANTE will lock to or generate word clock, as well as locking to the incoming Dante audio stream. In contrast with previous models, continuous channel metering on every channel is not provided and there is no internal mixer. Instead, individual channels, or pairs of channels can be monitored on a PFL bus providing both hi-resolution metering and headphone monitoring.

Specifications:

  • Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Bit Depths: 16/24 bit
  • Disk Interface: USB2
  • Disk Format: FAT32 - compatible with both Mac and PC
  • File Format: Broadcast Wave, universally readable
  • External Drive: 1 off USB2 (480Mbit/sec); BBR64-MADI writes
    9.5Mbytes/sec for 64ch@48k = 33.4Gbytes/hour
    (10,000rpm drives recommended to optimise seek times
    during playback). Supports USB2 RAID arrays (such as the
    Glyph or Drobo devices).
  • File Type: Standard mono Broadcast WAV files
  • Monitoring: Headphone output provides mono or dual mono pre fade listen (PFL) of any channel with hi-res metering
  • Size: 19" rack mounting, 1U
  • Standard DANTE Ethernet connection on RJ45 connector. Wordclock in or out (switchable BNC).
    8 x balanced analogue inputs on 25w D-type (Tascam format)
