Datavideo DAC-60 HD/SD-SDI to VGA Converter

OUR PART #: DAC-60 MFR #: DAC-60

Copied to clipboard

The DataVideo DAC-60 demonstrates a convenient way to convert mainstream High Definition and Standard Definition SDI signals to VGA. ...Read more

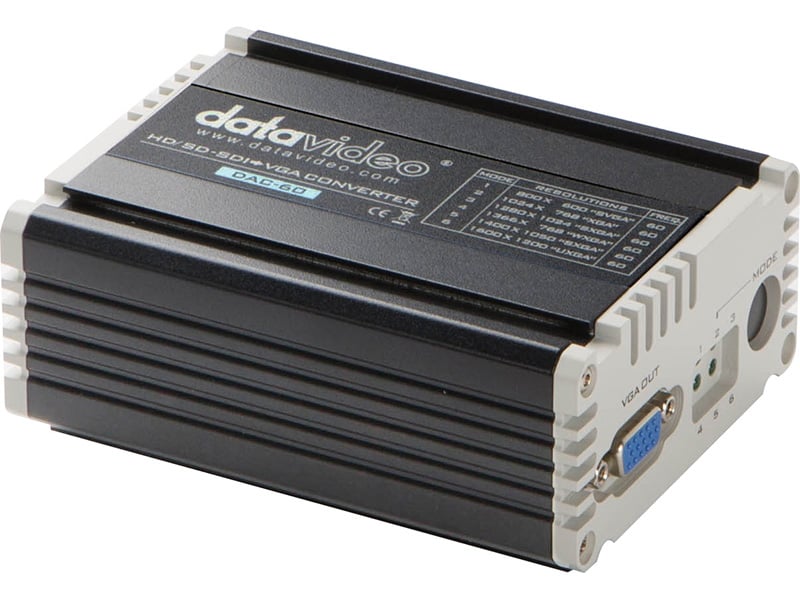

Datavideo DAC-60 HD/SD-SDI To VGA Converter Image 1
Datavideo DAC-60 HD/SD-SDI To VGA Converter Image 2
Datavideo DAC-60 HD/SD-SDI To VGA Converter Image 3
Datavideo DAC-60 HD/SD-SDI To VGA Converter Image 4
Datavideo DAC-60 HD/SD-SDI To VGA Converter
Our Price: $379.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The DataVideo DAC-60 demonstrates a convenient way to convert mainstream High Definition and Standard Definition SDI signals to VGA. This allows use with VGA-based equipment such as projectors, plasma TVs, and LCD screens.

Includes

  • DAC-60 Unit
  • Instruction Manual
  • Power Supply and Cord

Features

  • VGA Conversion
  • Converts HD/SD-SDI to VGA.
  • Easy to Mount
  • Mounts between camera and tripod for ease of use
  • Adjustable Image
  • Adjustable Brightness, Contrast, Hue, and Saturation using a PC Computer via USB Connection

Specifications

  • Supported Input Formats:
    • SD: 720x480i /720x576i
    • HD: 1280x720p (50/60/59.94)
    • HD: 1920x1080i (50/60/59.94)
    • HD: 1280x1080p (24/25/30/50/60)
  • VGA Output Formats:
    • 800×600 (60Hz)
    • 1024×768 (60Hz)
    • 1280×1024 (60Hz)
    • 1366×768 (60Hz)
    • 1400×1050 (60Hz)
    • 1600×1200 (60Hz)
  • Video Connections:
    • Input: 1x HD/SD-SDI
    • Output: 1x VGA
    • Loop-Through: 1x HD/SD-SDI
  • Firmware Update Connection: USB
  • Power: 12V 0.5A 100-240V
