Apollo Design Technology AC-5CABLE-5
5-Pin DMX Cable, 5'

OUR PART #:  AC-5CABLE-5

5-pin DMX cable is used to run DMX signal from a lighting console to PSU's, automated fixtures, dimmers, and other products.
Learn More
Our Price: $32.08
List Price: $38.90
You save 18%!
Write the first review.
Apollo Design Technology AC-5CABLE-5
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

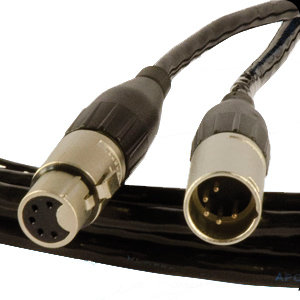

5-pin DMX cable is used to run DMX signal from a lighting console to PSU's, automated fixtures, dimmers, and other products. Apollo cable has a rugged heat resistant, yet flexible PVC outer jacket and 5-pin XLR connectors.

Specifications:

  • Conductor: 22AWG tinned, annealed copper stranded 19/34
  • Conductivity: 15.5 Ohm (max.) per 1,000 ft. @ 25ºC
  • Impedance: 100 Ohms calculated
  • Capacitance:
      -  23 pf/ft. nom. cond. to cond.
      -  37 pf/ft. nom. cond. to shield
  • Insulation: Color coded pairs, high density polyethylene, black & white, red & green
      -  Nom. Wall: 0.0095"
      -  Min. Wall: 0.007"
  • Shield:
      -  Inner: Aluminum/mylar, 100% coverage
      -  Outer: Tinned copper braid, 88% coverage
  • Drain: None
  • Jacket: Black polyurethane
      -  Nom Wall: 0.035"
      -  Elongation: 550%
      -  Tensile: 4,500 PSI minimum
  • O.D. Weight/m ft.:
      -  Nominal O.D.: 0.245"
      -  Weight: 35lbs. per 1,000 ft.
  • Operating  Temp.: Plus 80ºC, Minus 20ºC
