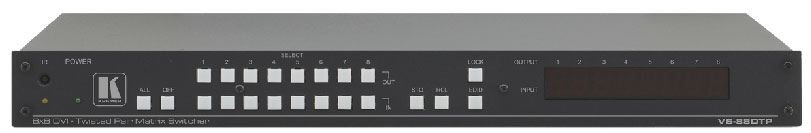

Kramer VS-88DTP
8x8 DVI Matrix Switcher with Twisted Pair Outputs

OUR PART #:  VS88DTP

The VS-88DTP is a high-performance matrix switcher for DVI signals.
Learn More
Our Price: $3,356.00
List Price: $4,195.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VS-88DTP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VS-88DTP is a high-performance matrix switcher for DVI signals. The unit reclocks and equalizes the signal and can route any or all inputs to any or all DGKat™ twisted pair outputs simultaneously.

Features:

  • Max. Data Rate - 1.65Gbps.
  • Inputs - 8 DVI-D on DVI-I connectors.
  • Outputs - 8 DGKat twisted pair on RJ-45 connectors.
  • HDTV Compatible.
  • DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for DVI systems.
  • System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable.
  • Cable - Requires STP (shielded twisted pair) cable. For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623 or BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
  • Flexible Control Options - Front panel, IR remote (included), RS-232 (K-Router™ Windows®-based software is included), RS-485, Ethernet (Windows®-based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
  • Output Disconnect - Each output.
  • Front Panel Lockout.
  • Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
  • Worldwide Power Supply - 100-240V AC.
  • Standard 19” Rack Mount Size - 1U. Rack “ears” included.

Specifications:

  • Inputs: 8 DVI, 1.2Vpp on DVI Molex 24-pin female connectors; DDC signal 5Vpp (TTL).
  • Outputs: 8 DGKat twisted pair on RJ-45 connectors.
  • Bandwidth: Supports up to 2.25Gbps bandwidth per graphic channel.
  • Compliance with Standards: Supports DVI 1.1.
  • Max Resolution: Up to UXGA; 1080p, 1920x1200.
  • Power Source: 100-240V AC; 50/60Hz, 43VA.
  • Controls: Front panel buttons, infrared remote control transmitter, RS-232, RS-485 & Ethernet.
  • Dimensions: 19" x 7" x 2U W, D, H.
  • Weight: 5.5 lbs (2.5 kg) approx.
  • Accessories: Power cord, infrared remote controller, null-modem adapter, rack "ears".
