Blonder-Tongue FOC-116U-FA
1x16 19" Rackmount Optical Coupler

OUR PART #:  FOC-116U-FA

The FOC Series of optical couplers are used to split 1310 & 1550 nm light sources, with minimal loss.
Learn More
Our Price: $722.93
List Price: $729.00
Write the first review.
Blonder-Tongue FOC-116U-FA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

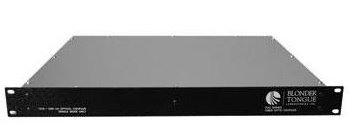

The FOC Series of optical couplers are used to split 1310 & 1550 nm light sources, with minimal loss. The couplers are 19 inch rack mountable and have FC/APC or SC/APC connectors for superior reflection performance.

Features:

  • Low Insertion Loss - High Directivity
  • 1310 & 1550nm Dual Window Operation
  • 1 x 2, 3, 4, 6, 8, 16 Models
  • Rack Mount
  • FC/APC & SC/APC Connector Models

Specifications:

  • Optical:
      -  Number of Inputs: 1
      -  Wavelength: 1310 & 1550 nm
      -  Number of Outputs: 16
      -  Insertion Loss (dB): 12.6
      -  Uniformity (dB): > 2.8
      -  Directivity (dB): > 50
  • Mechanical:
      -  Dimensions (W x H x D): 19 x 1.75 x 12.25 in., 483 x 44.5 x 311 mm
      -  Weight: 3.8 lbs., 1.7 kg
      -  Connectors: FC/APC
