Blonder-Tongue FOC-102U-FA 1x2 19" Rackmount Optical Coupler

OUR PART #: FOC-102U-FA

Copied to clipboard

The FOC Series of optical couplers are used to split 1310 & 1550 nm light sources, with minimal loss. ...Read more

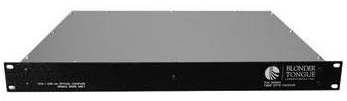

Blonder-Tongue FOC-102U-FA 1x2 19" Rackmount Optical Coupler Image 1
Blonder-Tongue FOC-102U-FA 1x2 19" Rackmount Optical Coupler
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The FOC Series of optical couplers are used to split 1310 & 1550 nm light sources, with minimal loss. The couplers are 19 inch rack mountable and have FC/APC or SC/APC connectors for superior reflection performance.

Features:

  • Low Insertion Loss - High Directivity
  • 1310 & 1550nm Dual Window Operation
  • 1 x 2, 3, 4, 6, 8, 16 Models
  • Rack Mount
  • FC/APC & SC/APC Connector Models
  • Specifications:
    • Optical:
      • Number of Inputs: 1
      • Wavelength: 1310 & 1550 nm
      • Number of Outputs: 2
      • Insertion Loss (dB): 3.3
      • Uniformity (dB): > 0.7
      • Directivity (dB): > 50
    • Dimensions (W x H x D): 19 x 1.75 x 12.25 in., 483 x 44.5 x 311 mm
    • Weight: 3.8 lbs., 1.7 kg
    • Connectors: FC/APC
