Blonder-Tongue HPC-24 24-Port Headend Passive Combiner

OUR PART #: HPC-24 MFR #: HPC-24

Copied to clipboard

HPC series consists of 5-1000 MHz passive RF combiners designed for use in a headend to combine the output of up to 32 single-channel devices such as modulators and processors. ...Read more

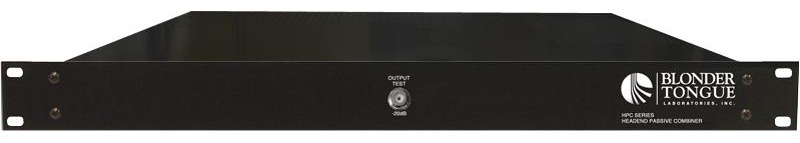

Blonder-Tongue HPC-24 24-Port Headend Passive Combiner Image 1
Blonder-Tongue HPC-24 24-Port Headend Passive Combiner
Our Price: $180.40
List Price: $185.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 19-21 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

HPC series consists of 5-1000 MHz passive RF combiners designed for use in a headend to combine the output of up to 32 single-channel devices such as modulators and processors. HPC is available in 8-, 12-, 24-, or 32-port models. All HPC models feature a compact design, high isolation between ports, low net combining loss, and RFI shielding for minimized egress/ingress interference. A front-panel -20 dB test port (75-ohm “F” type connector) allows testing of the unit’s output without interrupting the service.

Specifications:

  • Frequency (MHz): 5-1000
  • Max. Insertion Loss (dB):
    • 5-40: 14.3
    • 40-450: 14.3
    • 450-750: 15
    • 750-1000: 16.5
  • Min. Isolation (dB):
    • 5-40: 30
    • 40-450: 32
    • 450-750: 30
    • 750-1000: 28
  • Test Port (dB):
    • 5-40: 20+/-0.5
    • 40-450: 20+/-0.5
    • 450-750: 20+/-0.5
    • 750-1000: 20+/-0.5
  • Input Return Loss (dB):
    • 5-40: 20
    • 40-450: 20
    • 450-750: 20
    • 750-1000: 18
  • Output Return Loss (dB):
    • 5-40: 20
    • 40-450: 20
    • 450-750: 18
    • 750-1000: 18
  • Impedance 5-1000: 75
  • Dimensions (W x D x H): 19.0 x 8.0 x 1.75 inches (483 x 203 x 44 mm)
  • Shipping Weight: 2.3 lbs (1.04 kg)
  • Connectors:
    • Inputs: "F" Female
    • Output: "F" Female
    • Test Port: "F" Female
