Altinex DS801-113
VGA/ Component + Audio UTP Receiver

OUR PART #:  DS801-113

The Altinex DS801-112 Transmitter and DS801-113 Receiver combination provides a means of transmitting video (computer or component)...
Learn More
Sale Price: $69.43
List Price: $347.00
You save 80%!
Write the first review.
Altinex DS801-113
In Stock

Related Products

The Altinex DS801-112 Transmitter and DS801-113 Receiver combination provides a means of transmitting video (computer or component), and analog audio over a single Twisted Pair-type (CAT-5/6) cable. Both units are compact and easy to use, allowing for installation into walls or furniture, neat desks, displays, etc. with limited free space available.

The transmitter provides a 15-pin HD female connector for video input (VGA or YPbPr) and a 3.5 mm stereo jack for audio input; the local output uses a 15-pin HD female connector. The female RJ-45 main output provides the main drive to the twisted pair cable, which is accepted on the receiver's female RJ-45 main input connector.

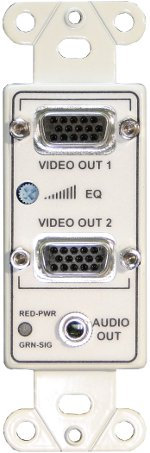

The receiver also has two 15-pin HD female connectors for the dual buffered video outputs (VGA orYPbPr) and a 3.5 mm jack for audio output. The audio output is mono on both the left and right channels. Video equalization is provided on the receiver to compensate for signal loss when using long cables.
The latest generation of Twisted Pair devices uses an innovative, patented signal processing technology that allows transmitting and receiving fully equalized computer video signals, stereo, and audio signals over long distances.

Altinex DS801-113 Features:

  • Transmit computer (VGA) or component (YPbPr) videoand audio over single CAT-5 cable
  • Compact and easy to use
  • Local video output on transmitter; dual video outputon receiver
  • Power/signal present indicators
  • INTERA family styling
  • Superior transmission distances - Up to 300 ft (91 m) at UXGA 1600 x 1200 (using ALTINEX low-skew cable)
