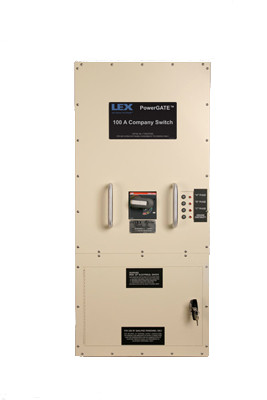

Lex Products Corp CS-100F-C5DS1
5-Wire 100A Type 1 5-Wire Company Switch (Sand Color)

OUR PART #:  CS-100F-C5DS1

The Lex Products CS-100F-C5DS1 5-Wire Company Switch provides a safe and convenient means of supplying temporary power access.
Learn More
Our Price: $4,893.19
List Price: $6,534.70
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Lex Products Corp CS-100F-C5DS1
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Lex Products CS-100F-C5DS1 5-Wire Company Switch provides a safe and convenient means of supplying temporary power access. The space saving, metal enclosure provides both 16 Series Cam-type and lug-type outputs. Connections are protected by a 100% rated, electronic trip main breaker.


  • Company Switches provide enhanced safety and convenience when connecting temporary 3 Phase power to portable equipment such as dimmer racks, audio racks and motor controls
  • Theaters
  • Convention Centers
  • Studios
  • Theme Parks
  • Recreation Facilities

Lex Products CS-100F-C5DS1 Company Switch Features:

  • This Lex PowerGATE™ Company Switch features both Cam-type connectors and lugs, to accommodate both connection styles in one compact, connection chamber for ultimate flexibility
  • The connection chamber door is lockable and is also interlocked to the main breaker ensuring that connections cannot be made or broken under load to ensure safe operation
  • Both Cam and lug connections are behind the access door, eliminating accidental disconnection, unauthorized access and/or tampering with connections
  • Because the PowerGATE Company Switch has one wiring chamber instead of two, the unit is far more compact, saving space
  • The unique arrangement of the Cam and lug combination allows for both sets of cables to drape downward for a lower profile against the wall, reducing trip hazards
  • An integral LED worklight is provided in the connection chamber for ease of connection and enhanced safety

Lex Products CS-100F-C5DS1 Company Switch Specifications:

  • Rating: 100 Amp, 3 Phase, 120/208 VAC 650,00 AIC Electronic Main Breaker, 100% Rated
  • Output: (6) 16 Series Cam-type devices
    • Black - phase
    • Blue - phase
    • Red - phase
    • White (2) - neutral
    • Green - ground
  • Construction: Powder coated 14 Gauge CRS
  • Cabinet Finish: Sand
  • Dimensions: 38.50" H x 20.27" W x 11.64" D
  • Weight: 123 lbs
