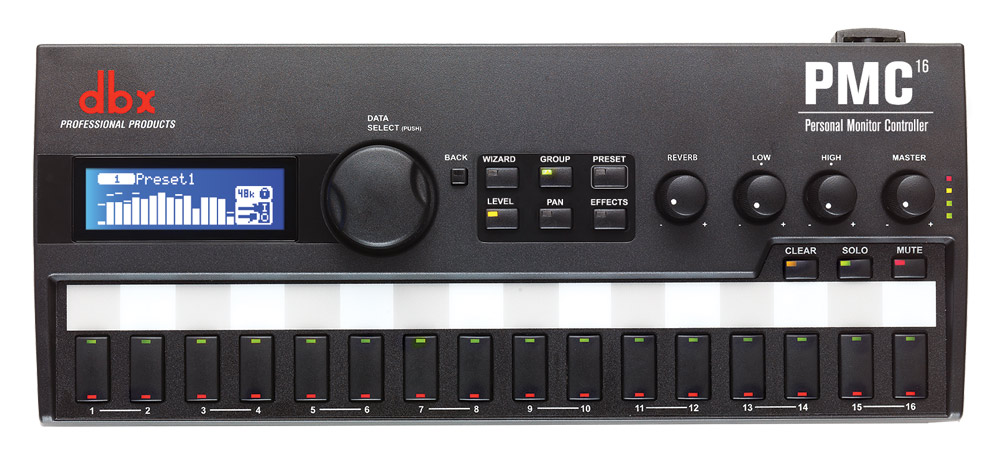

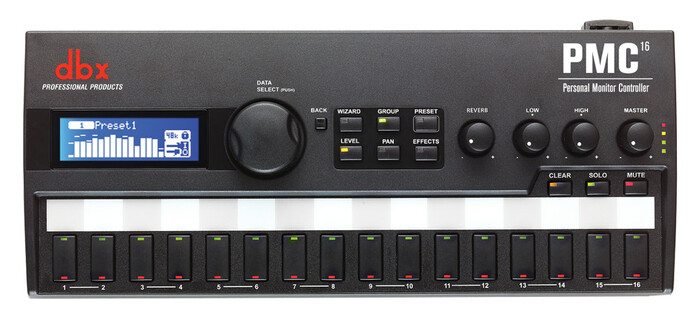

DBX PMC16
16-Channel Personal Monitor Controller

OUR PART #:  PMC16

The PMC16 is a 16 channel personal monitor controller which allows the user to create a custom mix from 16 channels of audio.
Learn More
Our Price: $499.95
List Price: $624.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DBX PMC16
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The PMC16 is a 16 channel personal monitor controller which allows the user to create a custom mix from 16 channels of audio. Designed to be used with the dbx TR1616 or any other BLU link compatible device, the PMC16 allows for monitoring with headphones, in-ear monitors, powered monitors, or traditional wedge monitors. Multiple PMC16s can be daisy chained using CAT5e cable allowing each user to receive 16 channels of high-end digital audio and create their own personalized mix to suit their monitoring needs. The PMC16 comprises a 16 channel mixer section with full control of levels, panning, effect send levels, muting, and soloing. Onboard Lexicon© reverb provides the finishing touch. The PMC16’s output processing section includes: stereo width control, wedge monitor compensation EQ, high and low master EQ, master level control, and dbx limiting. With a Setup Wizard for ease of configuration, full 16 channel level metering, channel grouping, 16 preset locations for future recall of configurations and mixes, and an intuitive yet powerful user interface, PMC16 gives you the power to dial in your mix exactly as you want it, in real time.

NOTE: The PMC16 network device can connect digitally with the Soundcraft Si Expression and Si Performer mixers WITH the purchase of the BSS BLU-SI card. Please contact your sales representative for more information on this and other products.

Features:

  • 16-Channel remote personal monitor control
  • Wizard Set-up and configuration
  • Courtesy Lexicon Reverb w/type and wet/dry control
  • dbx PeakStop Limiting
  • 16 Presets locations
  • All inputs and outputs included
  • USB - For firmware update
  • LCD Screen
  • Works on standard BLU link Bus
  • Sturdy mic-stand mount built-in
  • Works as 48kHz or 96kHz Switchable D/A Conversion
  • Up to 60 units can be chained together with no loss of controller fidelity)

Specifications:

  • Frequency Response: +0/-0.2 dB 20 Hz – 20 kHz (Measured at 0 dBu output level)
  • Dynamic Range:
     >108 dB unweighted 22 Hz – 22 kHz bandwidth
     >112 dB A-weighted
  • THD+N: <.005% 20 Hz – 20 kHz (Measured at 0 dBu output level)
  • Crosstalk: <97 dB 20 Hz – 20 kHz

BLU link Digital Audio Bus

  • Bit-Depth: 24-bit
  • Sample Rate: 48 kHz or 96 kHz
  • Connectors: 2 x RJ45 Ethernet connectors
  • Maximum Cable Length: 100 m/300 ft between devices (Category 5e cable)
  • Maximum Number of Nodes: 60
  • Latency Per Node: 4/Fs [0.08 ms @ 48 kHz, 0.04 ms @ 96 kHz]

Analog Outputs (XLR & 1/4")

  • Maximum Output Level: 20 dBu
  • Output Impedance: 40 Ohms

Headphone Outputs (1/8" & 1/4")

  • Power/Impedance: 900 mW per channel at 50 Ohms (1/8" and 1/4" jacks are in parallel)

Power

  • Adapter: PS0920DC-01 (100-240 V AC, 50/60 Hz)
  • Power Consumption: 18 W
  • Power Requirements: 9 V DC 2.0 A

Weight /Dimensions

  • Product Weight: 2.26 lb (1.03 kg)
  • Power Supply Weight: 0.31 lb (0.14 kg)
  • Dimensions: 2 1/8" (H) x 11 5/16" (W) x 4 13/16" (D) (5.4cm x 28.7cm x 12.2cm)
Power Station Power Supply for PM16
DBX PS-6 Power Station Power Supply for PM16
The dbx PS6 is a road-worthy power supply that can supply AC power for up to six separate PMC16 units. It connects to a PMC16 Personal Monitor Controller via a standard 12-volt DC center-negative cable.
