Product Overview

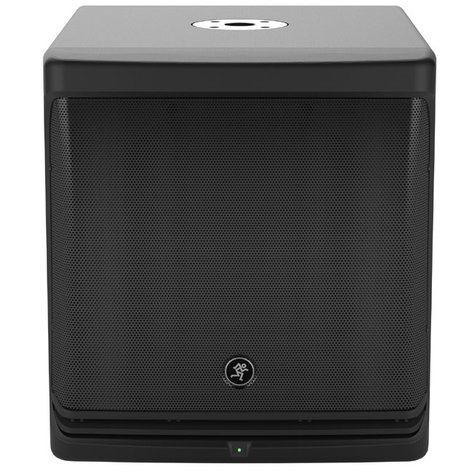

Mackie's DLM12S 12" powered subwoofer delivers 1000 watts RMS (2000 watts peak) of power. It features an integrated Mackie DLP digital processor with intuitive one-touch control over all of the tools you demand for your professional sound system. A precision digital crossover optimizes any loudspeaker, including perfect presets for your Mackie full-range loudspeakers. Thanks to its alignment delay for larger system deployment and Smart Protect technology, your investment is well protected.
The rugged 15mm poplar cabinet is unbelievably compact with a durable, powder-coated grille and integrated pole-cup. Pair it with a Mackie DLM series full-range loudspeaker for the most powerful compact sound system ever.
Features
- 1000W RMS (2000W peak) power via ultra-efficient Class-D amplification
- Ultra-low frequency extension hits hard down to 35 Hz
- DLP Digital Processor
- Presets for use with DLM and SRM Series full-range loudspeakers
- Variable precision digital crossover control for optimization with any loudspeaker
- Six total XLR connects for flexible I/O control and two line level inputs
- Two full-range outputs for side fills, etc., and two high-pass outputs for direct connection to DLM loudspeakers
- Unmatched system control for professional applications
- Alignment delay up to 300ms for delay stack, balcony, etc.
- Three memory locations for instant venue setting recall
- Smart Protect DSP dynamically protects amp/driver
- Innovative ultra-compact design
- Pole mount a DLM8 or DLM12
- Extremely durable 15mm poplar cabinet
Specifications
- Acoustic Performance:
- Frequency Response (-10 dB): 35 Hz, user selectable 90 - 135 Hz
- Max Peak SPL (@ 1m calculated): 128 dB
- LF Driver: 12"
- Voice Coil Diameter: 3"
- Diaphragm Material: Paper
- Magnet Material: Ferrite
- Power Amplifiers:
- 1000 W RMS / 2000 W Peak Power
- Rated THD: < 1%
- Cooling: Multi-speed fan
- Design: Class D
- DL2 Digital Mixer System Processing:
- Volume: Off (-infinity) to +10 dB
- Crossover: Four preset modes, one variable mode
- Delay: 0 - 300 ms
- Memory: Three locations for instant venue setting recall and factory reset
- Input/Output:
- Input Type: Female XLR balanced differential (stereo left/right)
- Input Impedance: 20 kΩ balanced, 10 kΩ unbalanced
- Full Range Outputs: Male XLR balanced (parallel with input)
- High Pass Outputs: Male XLR balanced
- Construction:
- Cabinet: Extremely durable 15mm poplar
- Finish: High durability black paint
- Handles: One on each side
- Grille: Powder-coated 20 gauge steel
- Mounting Methods: Sits on floor or stage
- Dimensions: 17.9" x 16.4" x 20.8"
- Weight: 48 lbs
