Mackie DLM8 8" Powered Loudspeaker, 2000W

OUR PART #: DLM8 MFR #: 2037869-00

Copied to clipboard

This lightweight, portable speaker from Mackie packs a punch. Don't let its small size fool you; the DLM8 can deliver 2000 watts. ...Read more

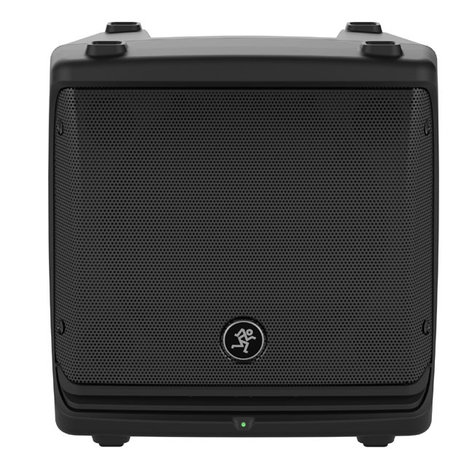

Mackie DLM8 8" Powered Loudspeaker, 2000W Image 1
Mackie DLM8 8" Powered Loudspeaker, 2000W Image 2
Mackie DLM8 8" Powered Loudspeaker, 2000W Image 3
NiEwft_H5BE
3 Videos
Mackie DLM8 8" Powered Loudspeaker, 2000W
Our Price: $899.99

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$25/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

This lightweight, portable speaker from Mackie packs a punch. Don't let its small size fool you; the DLM8 can deliver 2000 watts! It's Class "D" amplifier can produce a ton of power while taking up little space and weight, and doesn't require the huge heat sinks the speakers of old needed. It's 812" woofer and 1.75" compression driver and powerful TruSource DSP Technology provides the clarity you need to fill a performance space.

The DLM12 features Mackie's DL2 integrated 2-channel digital mixers. Between the 3-band EQ, 16 onboard effects, and a feedback destroyer, the loudspeaker is a versatile piece of equipment! It can be mounted on a pole, on the wall, as a floor monitor with it's integrated kick stand, or even flown. Its versatility makes it a fantastic solution for professional install applications, but is small enough to be used for portable applications as well.

Features

  • Mackie designed, vertically-aligned, common-magnet TruSource driver
    • Powerful TruSource DSP delivers seamless clarity, consistent coverage and unmatched fidelity
  • DL2 integrated 2-channel digital mixer with FX, 3-band EQ, and effects control, plus feedback destroyer
    • XLR/TRS combo and dual RCA connectors handle mic, line, stereo, and instrument signals
    • Alignment delay up to 300ms for delay stack, balcony, etc.
    • Three memory locations for instant venue setting recall
    • Smart Protect DSP dynamically protects amp/driver
  • Innovative ultra-compact design
  • Flyable via standard M10 rigging hardware, or wall-mount with SWM300 articulated arm (sold separately)

Specifications

  • Acoustic Performance:
    • Frequency Response (-10 dB): 65 Hz - 20 kHz
    • Max Peak SPL (@ 1m calculated): 125 dB
    • Crossover Point: 1.6 kHz
    • Dispersion: 90° conical
  • Equalization: 3-band
    • Low Shelving: ±15 dB @ 80 Hz
    • Mid Peaking: ±15 dB @ 2.5 kHz
    • High Shelving: ±15 dB @ 12 kHz
    • Increments: ±3 dB
  • HF Driver: 1.75"
    • Horn Entry Diameter: 1.0"
    • Diaphragm Material: Polyimide Film
    • Magnet Material: Ferrite
  • LF Driver: 8"
    • Voice Coil Diameter: 2"
    • Diaphragm Material: Paper
    • Magnet Material: Ferrite
  • Power Amplifiers:
    • LF Power Amplifier: 500 W RMS / 1000 W Peak Power
    • Rated THD: < 1%
    • Cooling: Multi-speed fan
    • Design: Class D
    • HF Power Amplifier: 500 W RMS / 1000 W Peak Power
      • Rated THD: < 1%
      • Cooling: Multi-speed fan
      • Design: Class D
    • System Power Amplification: 1000 W RMS / 2000 W Peak Power
  • DL2 Digital Mixer System Processing:
    • EQ: Six speaker modes
    • Alignment Delay: 0-300 ms
    • FX: 16 presets
    • Multi-band Feedback Destroyer: On/Off/Clear/Hold
    • Memory: Three locations for instant venue setting recall and factory reset
  • Input/Output:
    • Channel 1:
      • Mic: 3.3 kΩ balanced
      • Line: 20 kΩ balanced, 10 kΩ unbalanced
      • 1/4" TRS: 16 kΩ balanced, 8 kΩ unbalanced
    • Channel 2:
      • XLR Line: 20 kΩ balanced, 10 kΩ unbalanced
      • 1/4" TRS (Hi-Z instrument): 1 MΩ unbalanced
      • RCA: 25 kΩ unbalanced
    • Thru: Male XLR balanced
  • Mounting Methods: Floor mount, pole mount, wall mount, or fly via three integrated M10 mounting points
  • Dimensions: 12.3" x 12.1" x 11.9"
  • Weight: 22 lbs
