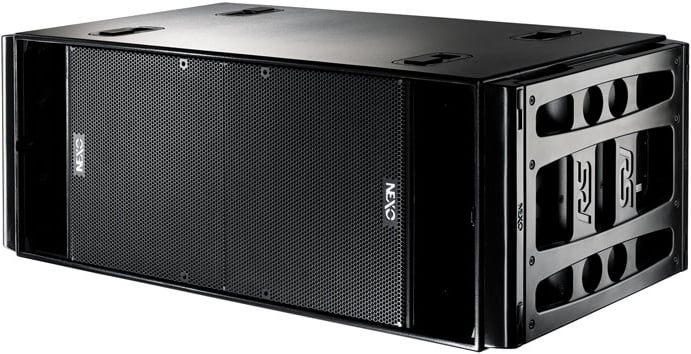

Nexo RS18-CI
Dual 18" Install Subwoofer in Carpeted Finish

OUR PART #:  RS18-CI

The RS18 applies NEXO's patent pending RAY SUB technology in a 2 x 18" subwoofer format.
Learn More
Similar Products

The RS18 applies NEXO's patent pending RAY SUB technology in a 2 x 18" subwoofer format. RAY SUB technology optimizes the positioning and phase relationships of radiating surfaces in vented enclosures, permitting acoustic distance from rear to front sections to always increase as frequency decreases.  Consequently rear and front sections sum up efficiently over the entire subwoofer bandwidth, allowing for an average of 5db gain from the rear section in the forward direction and cancelling in the rear direction.

Utilized in a stand alone format, RAY SUB technology, allows the same cabinet to be configured for any polar pattern, omni-directional as a standard direct radiating subwoofer when speakers are facing the audience, or highly directional when a speaker cabinet is rotated sideways or upwards.  With arrays, RAY SUB subwoofers can be set back to back, front to front, alternate, in vertical columns and, when column length is sufficient, to be beam-steered upwards or downwards.  Comprising of two 18" transducers with a frequency response of 31Hz – 100Hz and a sensitivity of 107db SPL, the RS18 delivers unchallenged versatility for installations and touring requirements where large format sub-bass cabinets are required.

Features:

  • Low Profile, High Output, Modular Scalable Bass
  • Configurable directivity pattern
  • Cardioid Pattern Reduces Rear Levels by Minimizing Rear/Side Wall Reflections
  • Aerodynamic Profiled Vents with 20db Noise Reduction and improved Linearity at high SPL
  • Applies across entire NEXO Product Line

Additional Product Features:

  • Components: 2 x 18" (46cm) long excursion neodynium 8O drivers
  • Dimensions with handles: 20.46" H x 55.24" W x 28.81" D (520 x 1403 x 732 mm)
  • Dimensions without handles: 20.46" H x 49.92" W x 28.81" D (520 x 1238 x 732 mm)
  • Shape: Rectangular
  • Net Weight: 199 lbs (90 kg)
  • Net Weight with handles: 231.5 lbs (105 kg)
  • Net Weight with rigging system: 278 lbs (126 kg)
  • Connectors: 4x NL4MP SPEAKON 4-pole on two connection plates (In & Through)
  • Construction: Baltic Birch ply finish with structured black coating. Dark grey carpet finish also available.

System Operation:

  • Electronic Controller: NX242ES4 Digital TDcontroller & NXAMP PoweredDigital TDcontroller presets are precisely matched to RS18 and includesophisticated protection systems.
    Using RS18 without a properly connected TDController will result in poor sound quality and can damage components.
  • Speaker Cables: 1-/1+ = Right or Rear
    2-/2+ = Left or Front
    RS18must use separate cables to the main system
  • Accessories: Bumper – Flying Plates – Handles – Dolly - Front Wheel Board
  • Rigging System*: Please refer to the user manual before anyoperation.
    *Please refer to the RS15 user Manual.
    Usable range data:frequency response capability with TD crossover slopes removed.

Shiping & Ordering:

  • Packaging: RS18s are packaged individually.
    Order RS18-C (finished greycarpeting) or RS18-P (finished in black structured coating)

NOTE: Additional specifications and information can be found on the data sheet located under the "Documentation" tab.

Main Bumper for RS18 Subs
Nexo RST-BUMPER18 Main Bumper for RS18 Subs
Bumper for RS18-C/P (maximum 12 cabinets)
Call for price! Not available online.

Wheelboard for RS18 Subwoofer
Nexo RST-WB18 Wheelboard for RS18 Subwoofer
The Nexo RST-WB18 is a wheelboard that is designed for use with the RS18 subwoofer system. This wheelboard allows for easy transport and setup of the RS18 subwoofer.
Call for price! Not available online.
