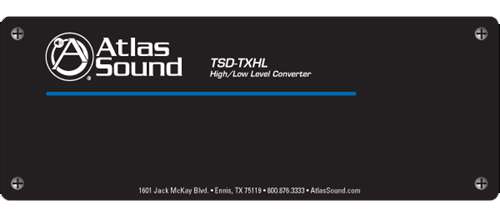

Atlas Sound TSD-TXHL
High/ Low Level Converter

OUR PART #:  TSD-TXHL

The TSD-TXHL is a high to low level converter designed to interface with 4O/25/70/100V distributed speaker lines.
Learn More
Our Price: $45.99
List Price: $57.99
You save 21%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound TSD-TXHL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The TSD-TXHL is a high to low level converter designed to interface with 4O/25/70/100V distributed speaker lines. An unbalanced line level output is provided to drive remote amplifiers or other devices. The TSD-TXHL allows easy expansion of zones without the need for dedicated wiring to remote locations. The high to low-level converter features an isolated transformer, which will not add measurable load to the speaker line. An output level control allows for trim adjustment to best match the remote amplifier (or other device) input sensitivity. The TSD-TXHL works perfectly in conjunction with Atlas Sound's CP and PA series amplifiers.

Features:

  • Tap Into 4O/25/70/100V Speaker Lines to Interface With Remote Amplifiers
  • Input Gain Adjustment Switch
  • Trim Level Control
  • Isolated Transformer
  • Removable I/O Connectors

Specifications:

  • High Level Input: Amplifier Speaker Outputs 4O, 8O, 25V, 70V and 100V
  • Output impedance 600O Unbalanced
  • Line Output Level Max Output 500mV
  • Frequency Response 40Hz - 25kHz (-3dB)
  • Dimensions :
      -  Height 1.5" (3.81 cm)
      -  Width 4" (10.16 cm)
      -  Depth 2.5" (6.35 cm)
  • Weight 6oz., .165kg
