RDL FP-TP4PW Power Inserter, Twisted Pair, 4 Sets of Outputs, Signal Loop-Through

OUR PART #: FP-TP4PW MFR #: FP-TP4PW

Copied to clipboard

Radio Design Labs' FP-TP4PW is a four output power inserter compatible with RDL twisted pair products. ...Read more

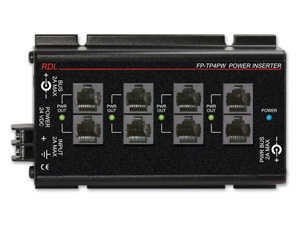

RDL FP-TP4PW Power Inserter, Twisted Pair, 4 Sets Of Outputs, Signal Loop-Through Image 1
RDL FP-TP4PW Power Inserter, Twisted Pair, 4 Sets Of Outputs, Signal Loop-Through
Our Price: $245.53
List Price: $327.37
You save 25%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$7/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Radio Design Labs' FP-TP4PW is a four output power inserter compatible with RDL twisted pair products. It is powered from a 24 Vdc power supply using either one of the power jacks or the terminal block. Power jacks are provided at each end of the module to facilitate chaining multiple FP-TP4PWs from a single power supply. Four dual-RJ45 jack sets are provided to connect remote twisted pair senders and receivers. Power is provided to all modules connected to the RJ45 jacks. Signal pairs feed through the associated RJ45s. The voltage feeding each dual-RJ45 jack set is separately protected by an automatically resetting fuse. A power LED is associated with each dual-RJ45 jack set, facilitating identification of wiring faults. Module power is indicated by a front-panel LED.

Features:

  • Power Four Sets of Remote Senders and Receivers from a Convenient Location
  • 24 Vdc Input on dc Power Jack or Full-Size Terminal Block
  • Power Bus Provides Expansion to Adjacent Power Inserters
  • Blue Power LED Shows Module is Receiving Power
  • Green LEDs Indicate Correct dc Output Voltage on RJ45s
  • Two Associated RJ45s Provided for Each Power Output
  • One Associated RJ45 may Power Receivers
  • The Other Associated RJ45 may Power Senders

Specifications:

  • Outputs (4): Dual-RJ45
  • Indicators (5): Power In (1); Power Out (4)
  • Power Connections (3): Power Jack (2); Terminal Block
  • Power Requirement: 24 Vdc @ 25 mA plus connected loads
  • Dimensions: 5.65" W x 3.25" H x 1.11" D (13.56 x 8.26 x 2.67 cm)
  • Ambient Operating Environment: 0° C to 55° C

Note:

Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product. Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.
