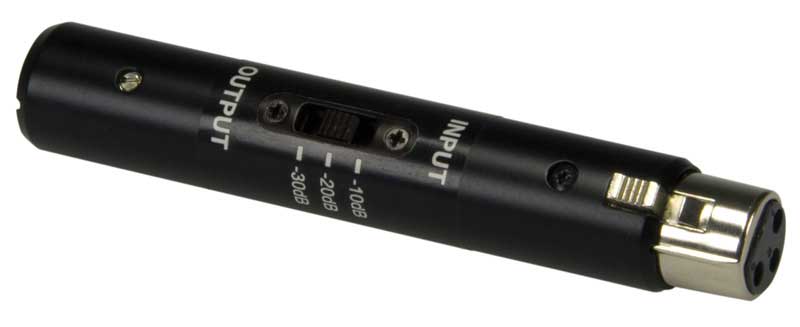

Vu VU-ATTEN
Adjustable In-Line Attenuator

OUR PART #  VU-ATTEN

Sale Price: $11.99
List Price: $35.95
You save 67%! (Low Price Guarantee)
In Stock

The VU-ATTEN is an adjustable in-line attenuator that enables balanced low-impedance microphones to connect to low- to mid-impedance inputs in high-SPL applications. Adjusts via a -10dB, -20dB or -30dB switch to match the microphone output to the inputs of mixers, portable recording devices, and more. The VU-ATTEN prevents input overloading due to high-level signals and is compatible with phantom power.

Vu VU-ATTEN Attenuator Features:

  • Provides -10dB, -20dB, or -30dB attenuation to prevent overload of sensitive input stages
  • Full metal case optimizes shielding from hum
  • Designed for balanced low-z microphones
  • Works with phantom power applications

Vu VU-ATTEN Attenuator Specifications:

  • Input Connector: XLR-Female
  • Input Impedance: 1.6K Ohms (-10dB)
  • Output Connector: XLR-Male
  • Output Impedance: 660 Ohms (-10dB)
  • Attenuation: -10dB ± 1dB, -20dB ± 1dB, -30dB ± 1dB
  • Frequency Response: 22Hz - 22KHz
  • Distortion : -10dB: <0.0011%, -20dB: <0.0012%, -30dB: <0.003%
  • Noise: < -115dB

Vu VU-ATTEN
Adjustable In-Line Attenuator

OUR PART #  VU-ATTEN

Product Information:

The VU-ATTEN is an adjustable in-line attenuator that enables balanced low-impedance microphones to connect to low- to mid-impedance inputs in high-SPL applications. Adjusts via a -10dB, -20dB or -30dB switch to match the microphone output to the inputs of mixers, portable recording devices, and more. The VU-ATTEN prevents input overloading due to high-level signals and is compatible with phantom power.

Vu VU-ATTEN Attenuator Features:

  • Provides -10dB, -20dB, or -30dB attenuation to prevent overload of sensitive input stages
  • Full metal case optimizes shielding from hum
  • Designed for balanced low-z microphones
  • Works with phantom power applications

Vu VU-ATTEN Attenuator Specifications:

  • Input Connector: XLR-Female
  • Input Impedance: 1.6K Ohms (-10dB)
  • Output Connector: XLR-Male
  • Output Impedance: 660 Ohms (-10dB)
  • Attenuation: -10dB ± 1dB, -20dB ± 1dB, -30dB ± 1dB
  • Frequency Response: 22Hz - 22KHz
  • Distortion : -10dB: <0.0011%, -20dB: <0.0012%, -30dB: <0.003%
  • Noise: < -115dB
