OUR PART # BOB16-O

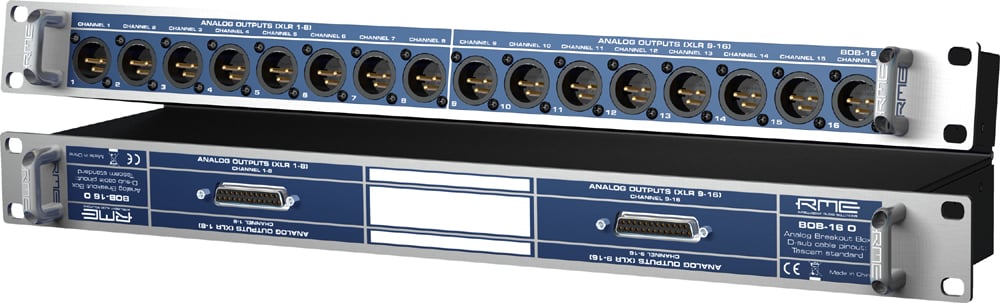

NOTE: The front and back of the unit are shown in the picture above. Two separate components are NOT included with the purchase of one BOB-16 O.
RME's BOB-16 O breakout box is an ideal rack solution for interconnecting multichannel XLRs with the common D-sub connector format.
The BOB-16 O connects 16 XLR outputs to two D-sub 25-pin inputs (channels 1-8 and channels 9-16). The breakout box supports all interfaces using an analog 25-pin D-sub output as well as the following RME interfaces: M-32 DA, M-16 DA.
The BOB-16 O connects up to 16 XLR outputs (Neutrik connectors) with two D-sub 25-pin connectors. It works like two breakout cables D-Sub from/to XLR. The usual multicore breakout cables are replaced with a 19" rack mount unit, preventing cable chaos, errors and connection problems. The BOB-16 O is pin compatible to the common TASCAM pinout format (e. g. used by RME and Digidesign). Adapters to the YAMAHA format are available from RME partner ALVA.
The BOB-16 O features RME's Flip frame option. It allows you to change rack brackets and handles from front to rear and thus to change XLR or D-sub from front to rear as well. This way a BOB will perfectly fit in every rack and working situation.
