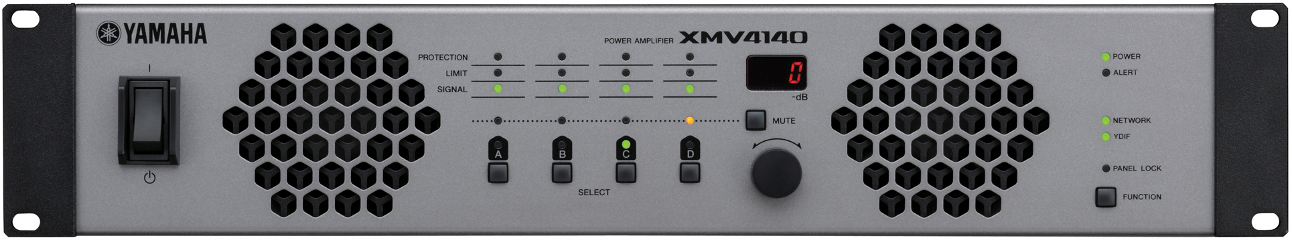

Yamaha XMV4140
4 Channel 70V/4 Ohm/8 Ohm Power Amplifier with YDIF

OUR PART #:  XMV4140

The Yamaha XMV4140 4 channel power amplifier has features are designed sepcifically to benefit installation sound systems.
Learn More
Our Price: $1,169.00
List Price: $1,299.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Yamaha XMV4140
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Yamaha XMV4140 4 channel power amplifier has features are designed sepcifically to benefit installation sound systems.

Yamaha XMV4140 Features:

  • Four-channel power amp that can operate in both high-impedance (70V/100V line) or low-impedance (4 Ohm/8 Ohm) modes simultaneously.
  • 70V or 100V mode can be assigned to every pair of channels without affecting the number of available output channels.
  • Double Power Mode function effectively doubles the output power of selected channels.
  • Equipped with YDIF* digital audio format for simple and fast system configuration.
    *YDIF digital transmission format; a unique proprietary Yamaha technology that delivers 16-channel audio and word clock transmission via standard Cat5 Ether cable.
  • Easy setting such as the mute on/off or attenuator changes with MTX Editor when used in system with MTX Series.
  • An innovative patent pending circuit improves the already highly efficient Class D circuit topology, bringing the efficiency level
    of the amplifier's output stage up to over 90%.
  • Feature a Power Factor Correction equipped switching power supply, ensuring harmonic control and decreasing the amount of
    current draw while maintaining the same output power.
  • Powerful, intelligent protection features for more reliable operation.

Yamaha XMV4140 Specifications:

  • Output Power (1 kHz, THD+N = 1%):
    • 4 Ohms: 140W x 4
    • 8 Ohms: 140W x 4
    • 4 Ohms/Double Power Mode: 280W x 2
    • 8 Ohms/Double Power Mode: 280W x 2
  • Output Power (High Impedance):
    • 100V line: 125W x 4 / 80 Ohm
    • 70V line: 125W x 4 / 40 Ohm
  • Voltage Gain:
    • RL = 8 Ohms: 28.7 dB
    • RL = 8 Ohms / Double Power Mode: 31.7 dB
    • 100V: 38.2 dB
    • 70V: 35.2 dB
  • Input Sensitivity (RL = 8 Ohms): +4 dBu
  • S/N Ratio (A-weighted): >/= 100 dB
  • Power Consumption:
    • 1/8 power (4 Ohm pink noise): 150W
    • Idle (4 Ohms): 37W
    • Standby: 18.5W
  • THD+N (1 kHz, half power): </= 0.2%
  • Frequency Response (RL = 8 Ohms, 100V/70V, Po =1W,20Hz-20kHz): 0 dB, +/- 1 dB
  • Crosstalk (1 kHz, half power, 8 Ohms, Att. max. input150 Ohm shunt): </= 60 dB
  • Maximum Input Level: +24 dBu
  • Input Impedance: 20 kOhm balanced, 10 kOhm unbalanced
  • Connectors:
    • Analog Input: Euroblock x 2 (6P, balanced)
    • Digital Input / Output: RJ45 x 2 (YDIF IN / OUT)
    • Speaker Output: Barrier strip x 4 pairs
    • Network: RJ45 x 1
    • Remote, Fault Output: Euroblock (3P) x 1
    • AC IN: AC Inlet x 1
  • Load Protection: POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting
  • Amplifier Protection:
    • Thermal: Output mute (heatsink temp =90°C) (Restored automatically)
    • Overcurrent: Output mute (Restored automatically)
    • Low load impedance: Output mute (Restored automatically)
  • Power Supply Protection:
    • Thermal: Amplifier shuts down automatically (heatsink temp =100°C)
    • Integrated power: Gain reduction (Restored automatically)
  • Cooling Fan: 3-Speed fan x 2, front-to-back airflow
  • Power Requirements: 100V, 120V, 230V-240V; 50Hz/60Hz
  • Dimensions (WxHxD): 18.9" x 3.5" x 16.6" (480 x 88 x422 mm)
  • Weight: 17.9 lbs (8.1 kg)
