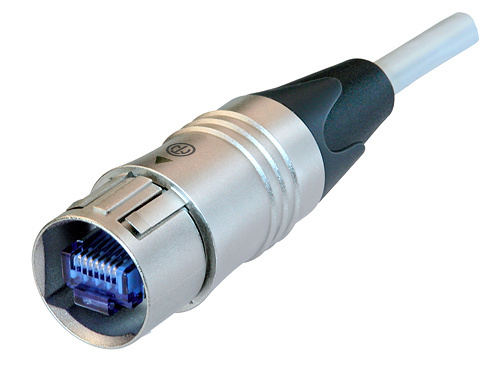

Neutrik NKE6S-10-WOC
10M CAT6 Patch Cable with etherCON & RJ45 Connectors

OUR PART #:  NKE6S-10-WOC

Neutrik's NKE6S-10-WOC preassembled etherCON CAT6 patch cable uses a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system.
Learn More
Our Price: $64.41
List Price: $87.50
Save up to 38% when you order by quantity!
  • Buy 25: $58.18 each.
  • Buy 50: $56.10 each.
  • Buy 100: $54.03 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NKE6S-10-WOC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Neutrik's NKE6S-10-WOC preassembled etherCON CAT6 patch cable uses a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system.

Neutrik NKE6S-10-WOC Features:

  • CAT6 compliant - data rate up to 10 GBit/s
  • CAT6 performance - fast data transmission and high bandwidth applications
  • CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
  • IP65 - Dust and waterproof in mated condition
  • Shielded system - high noise immunity and EMI protection
  • Push Pull mating - secure and proven locking system
  • Ready made patch cables with rugged cable carrier and unique chuck-type strain relief

Neutrik NKE6S-10-WOC Specifications:

Electrical Specifications:

  • Contact resistance: < 10 mOhm
  • Dielectric strength: 1 kVdc
  • Frequency range: 1 - 250 MHz
  • Insulation resistance: = 0.5 GOhm
  • Rated current per contact: 1,5 A
  • Rated voltage: 50 V

Mechanical Specifications:

  • Insertion force: = 40 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wire size: 8 x AWG 27/7 mm²
  • Locking device: Push-Pull
  • Cable: S/FTP

Material:

  • Boot: Polyuretane
  • Bushing: Polyamide (PA 6 15% GR)
  • Contact plating: 0.7 µm Au over 1.2 µm Ni plating
  • Contacts: Bronze (CuSn8)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Strain relief: Polyacetal (POM)

Environmental Specifications:

  • Flammability: UL 94 HB
  • Standard compliance: CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN50173
  • Protection class: IP 65
  • Temperature range: -10 °C to +60 °C
