Product Overview

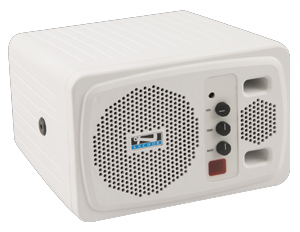

The Anchor AN-130+ is a lightweight, easy to use system that fills the room with your voice and with the wireless microphone you’re free to move around the room. The AN-130+ is ideal for use with your video projector, CD/DVD player or PC. Teachers, corporate presenters, or anyone who needs to reach groups of 1-100 uses the AN- 130+. Mount it on a stand, place it on a shelf, set the volume and you’re ready to go.

Anchor AN-130+ Features:

  • AC powered
  • 103 dB of clear sound
  • Reaches crowds of 100+
  • Lightweight only 9 lbs.
  • Magnetically shielded speaker for AV use
  • 4.5" woofer and 10 mm dome tweeter
  • 30W amplifier
  • Optional built-in 16 channel UHF wireless receiver (sold as part # AN-130F1+)
  • 1/4" line input and 1/4" Mic-In
  • 1/4" line output jack - daisy chain multiple systems or record output
  • Remote control for volume and mute (sold as part # AN-130RC+)
  • Bass and treble control

Anchor AN-130+ Specifications:

  • Rated Power Output: 30 Watts
  • Max SPL @ Rated Power: 103dB @ 1 meter
  • Frequency Response: 65 Hz – 18 kHz ± 3dB
  • Speaker Type: 4.5” woofer, 10 mm dome tweeter
  • AC Power Reqs.: 110 – 125 VAC, 50/60 Hz
  • Fuse Rating: T 1.0A / 250V
  • Dimensions (HxWxD): 5.25” x 8.4” x 9” (13cm x 21cm x 23cm)
  • Weight: 8.5 lbs (3.8 kg)
  • Inputs:
    • Line (2) Hi-Z, unbalanced
    • Microphone Lo-Z, unbalanced, 1/4” phone
  • Output: Line Lo-Z, buffered, 1/4” phone
  • Sensitivity For Rated Output:
    • Line: -20 dBV (100mVrms)
    • Microphone: -43 dBV (7.5 mVrms)
