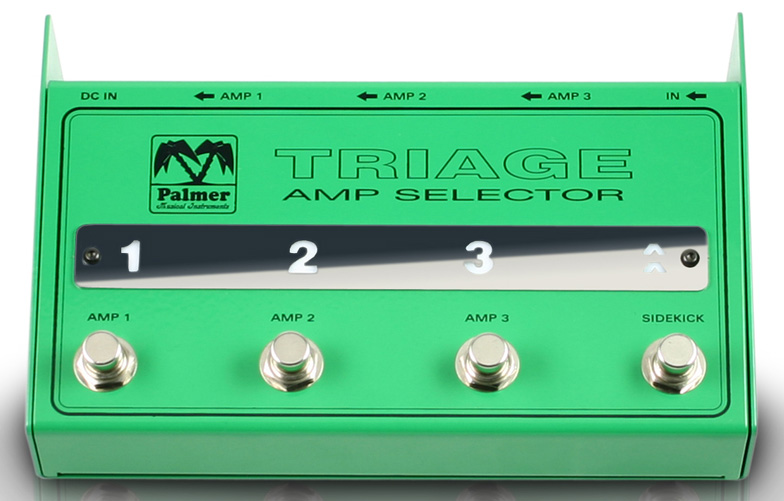

Palmer Triage
Amp Selector

OUR PART #:  PTRIAGE

Palmer's Triage is a selector box with which you can selectively route one guitar signal on to three different amps per footswitch.
Learn More
Our Price: $399.95
List Price: $658.95
You save 39%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Palmer Triage
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Palmer's Triage is a selector box with which you can selectively route one guitar signal on to three different amps per footswitch.  A fourth switch (SIDEKICK) makes it possible to select multiple amplifiers simultaneously.  All outputs are transformer isolated, so that no ground loop humming can occur.  Each output is equipped with a buffer amp for the volume, meaning the signal can be boosted by up to 12 dB (quadruple the amplification).  In addition each output has a phase switch with which you can flip the phase of the signal by 180┬░.  This is a very useful feature since it prevents cancellations that can occur when two amps with different phasing are played simultaneously.  Each output also has a ground lift switch.

Palmer PTRIAGE Specifications:

  • Type: amp switcher
  • Switching function: output switcher
  • Input connectors: 6.3 mm Jack
  • Input impedance: Ohm(s)
  • Output connectors: 6.3 mm Jack
  • Transformer isolated outputs: yes
  • Display: sidekick on/off, channel number
  • Controls: 3x output gain, phase, ground lift, 3xfootswitch
  • Power supply: 9 V DC power supply
  • Cabinet material: sheet steel
  • Cabinet / Housing surface: powder coated
  • Weight: 2 kg
