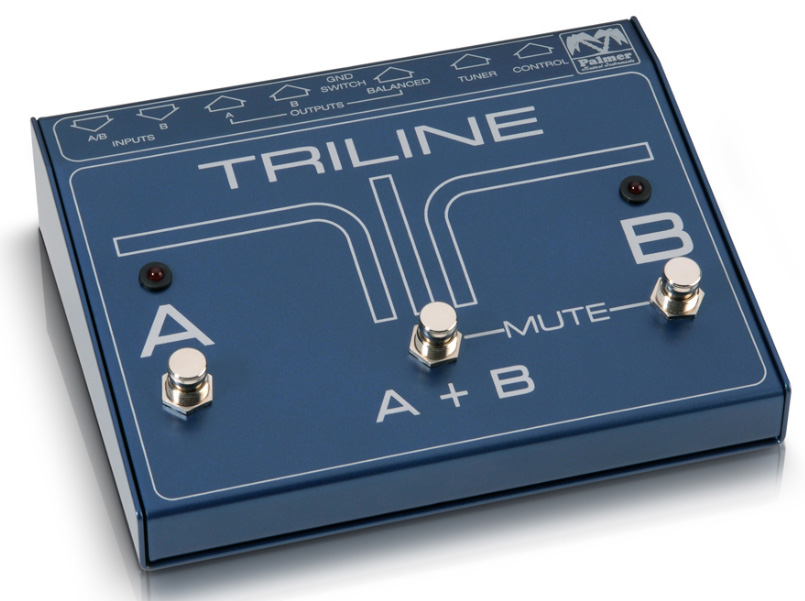

Palmer PGA01
Triline A/B-Y Guitar Router

OUR PART #  PGA01

Our Price: $499.95
List Price: $823.95
You save 39%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Palmer's PGA01 is their Triline A/B-Y box for connecting one or more guitars to different amplifiers.  Includes additional features such as level balancing for each channel, and a tuner output.  The Triline basically routes guitar signals to different amplifiers and functions as an active A/B/Y box.  Its universal design makes it possible to utilize various options:

1. A single guitar can be routed to either amplifier A, or B, or to both.
2. Two guitars can be routed to different systems, e.g. an electric guitar to a guitar amplifier, and an electro-acoustic guitar to a PA system via an integral DI box.
3. Using an additional device (E-Frog), one guitar can switch between two amplifier heads. However, both amplifiers use only one speaker cabinet, i.e. the output of the amplifier in use is routed to the speaker cabinet.  A load box prevents damage to the amplifier which is not in use.  The routing is done without any audible delay or clicking noise.  The outputs to the amplifiers are transformer isolated to prevent ground loops and humming.  You can match the channel gain using the trim potentiometers.  There is a special output for connecting up a tuning device.  During tuning, the amplifier outputs can be muted.

Specifications:

  • Type: amp switcher
  • Switching function: output switcher, input switcher
  • Input connectors: 6.3 mm Jack
  • Output connectors: 6.3 mm Jack, XLR
  • Transformer isolated outputs: yes
  • Display: channel number
  • Controls: 2x input gain, 3x footswitch
  • Cabinet material: sheet steel
  • Cabinet / Housing surface: powder coated
  • Weight: 1.7 kg

Palmer PGA01
Triline A/B-Y Guitar Router

OUR PART #  PGA01

Product Information:

Palmer's PGA01 is their Triline A/B-Y box for connecting one or more guitars to different amplifiers.  Includes additional features such as level balancing for each channel, and a tuner output.  The Triline basically routes guitar signals to different amplifiers and functions as an active A/B/Y box.  Its universal design makes it possible to utilize various options:

1. A single guitar can be routed to either amplifier A, or B, or to both.
2. Two guitars can be routed to different systems, e.g. an electric guitar to a guitar amplifier, and an electro-acoustic guitar to a PA system via an integral DI box.
3. Using an additional device (E-Frog), one guitar can switch between two amplifier heads. However, both amplifiers use only one speaker cabinet, i.e. the output of the amplifier in use is routed to the speaker cabinet.  A load box prevents damage to the amplifier which is not in use.  The routing is done without any audible delay or clicking noise.  The outputs to the amplifiers are transformer isolated to prevent ground loops and humming.  You can match the channel gain using the trim potentiometers.  There is a special output for connecting up a tuning device.  During tuning, the amplifier outputs can be muted.

Specifications:

  • Type: amp switcher
  • Switching function: output switcher, input switcher
  • Input connectors: 6.3 mm Jack
  • Output connectors: 6.3 mm Jack, XLR
  • Transformer isolated outputs: yes
  • Display: channel number
  • Controls: 2x input gain, 3x footswitch
  • Cabinet material: sheet steel
  • Cabinet / Housing surface: powder coated
  • Weight: 1.7 kg
