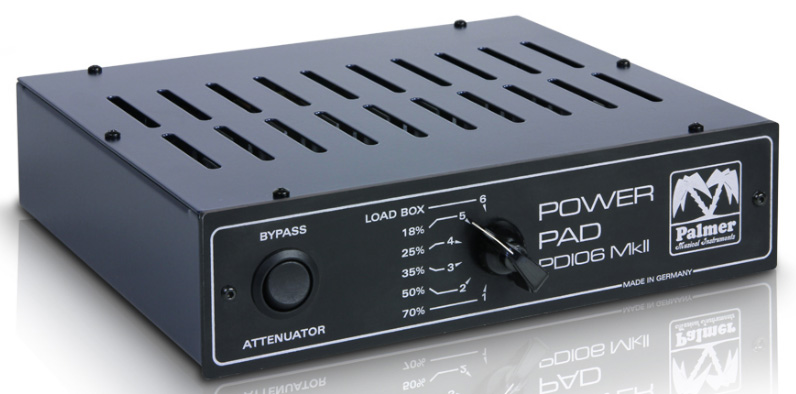

Palmer PDI06L16
16 Ohm Power Attenuator


Palmer's PDI06L16 is a power attenuator for live applications.  The device is connected between the amplifier output and the speaker cabinet.
Learn More
Our Price: $359.95
List Price: $592.95
You save 39%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Palmer PDI06L16
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Palmer's PDI06L16 is a power attenuator for live applications.  The device is connected between the amplifier output and the speaker cabinet.  It makes it possible to use the power stage distortion of tube amplifiers while reducing the associated high volume level.  This permits practical volume reduction in six increments from 100% to 18% for stage and practice room situations.  An additional setting mutes the speaker completely; the PDI06L16 then functions as a LOAD BOX and absorbs the entire output power of the amplifier.

This mode of operation is useful, for example, when connecting an amplifier equipped with a speaker cabinet emulation directly to the mixing desk using an existing line-out and loud volume levels in the recording booth are undesirable.  The unit has an input for the speaker signal from the amplifier and two outputs for connecting speaker cabinets.

The total impedance of the speakers must equal the value shown on the PDI06.  For example: the outputs of a PDI06 that is specified for 8 ohms can be connected to one 8 ohm cabinet or two 16 ohm cabinets. The output of the (tube) amplifier is also set to 8 ohms.

Palmer PDI06L16 Specifications:

  • Type: passive
  • Input type: unbalanced
  • Input connectors: 6.3 mm Jack
  • Output type: unbalanced
  • Output connectors: 6.3 mm Jack
  • Controls: rotary attenuation switch, bypass
  • Dummy load: yes
  • Voicing filter: no
  • Power attenuator: yes
  • Transformer isolated outputs: no
  • Cabinet material: sheet steel/aluminium
  • Cabinet / Housing surface: powder coated/anodize
  • Weight: 1.6 kg
